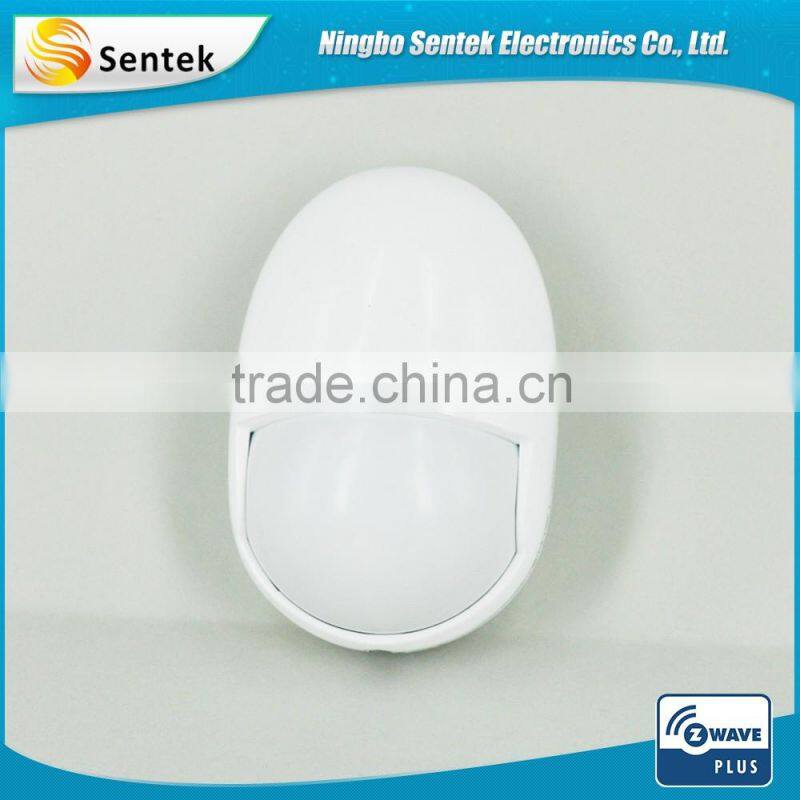

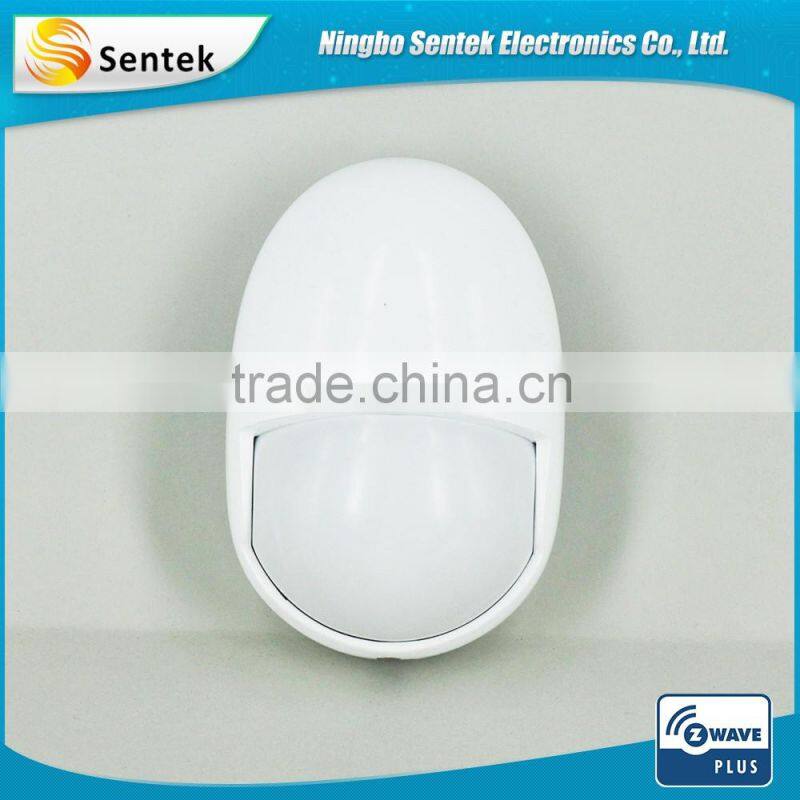

Z-Wave Plus Passive Infrared Motion Detector ZM-800

A motion sensor (passive-infrared or PIR) detects movement within a specific area by sensing the infrared energy emitted from a body as it moves across the sensor’s field of view. When this motion is detected, the sensor transmits an alarm signal to the control panel

Use these motion sensors to protect locations where door/window sensors are impractical or not needed. For example, use a motion sensor to protect large areas or open floor plans. Motion sensors also provide backup protection for door/window sensors.

ZM-800 wide angle PIR motion detector built with Z-Wave Plus module, utilized unique customs & high durability fresnel lens, the combination of dual element passive infraredtechnology and microprocessor intelligent processing provides precious body detection and outstanding Pet immunity function.

The PIR motion detector utilizes ultra-low power consumption design to make long battery lifetime, also integrated with RF immunity, temperature protection and noise reduction so on technologies against false alarm technology, has high endurable with local temperature changing caused by curtain or sun light etc.

Feature:

• Attractive Sleek Design with stylish white housing

• Comprehensive detection technologycombined passive infrared and microprocessor intelligent processing to eliminate the change of false alarm

• Intelligent temperature compensation circuit, reliability operation at high temperature

• Low power consumption design, longer battery life

• Optional for pulse accounting process (2/4), more application

• Downward view (look-down) detection to eliminate dead detection area beneath the sensor

• Built with tamper proof and self-test supervision function

• Prevents insect access into housing, reducing the chance of false activation

 Technical Data:

♦ Power Supply:  3.6V (ER14505 2700mAH)

♦ Battery Life Expectancy: 3 years (for typical use)

♦ Detection Method:  Passive Infrared

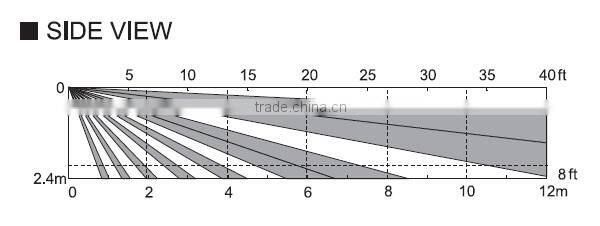

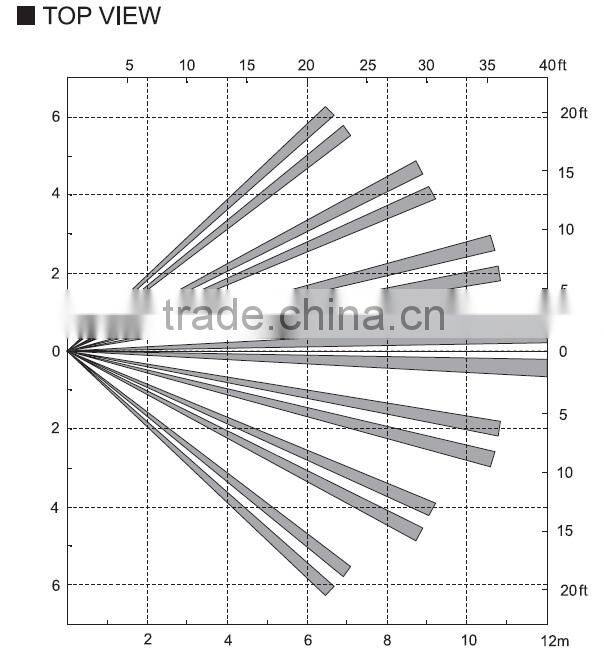

♦ Detection Area:  12m x 12m

♦ Operating Temperature:  -10℃ - +50℃

♦ RF Interference:   No Alarm at 10V/m

♦ White light immunity:≥6500Lux

♦ Detectable Walk Rate : 0.3 -3.0 meter/sec (1~10 ft./sec)

♦ Pet immunity: up to 40 kgs (66 lbs)

♦ Dimensions:  96.0x65.0x40.0mm

♦ Compliance with Standards: Meet EN50131-2-2, UL639

♦ Radio Protocol:         Z-Wave Plus

♦ Radio Frequency:      868,4 MHz EU;

                                     908,4 MHz US;

                                     921,4 MHz AU/NZ;

                                     869,2 MHz RU;

♦ Range: up to 30 meters indoors, depending on building materials used and the building structure

♦ Code: Alarm, Supervisory, Tamper/Removing, Low Battery
