Jiangsu 12mm Volume Control Rotary 5k Ohm Linear Potentiometer With 6 Pin

FOB Price

US$ 0.15 - 0.21 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	YH
Model Number	WH0122-4 L20 18T	Type	Rotary Potentiometer
Technology	Carbon Film	Resistance	1K ~1M
Resistance Tolerance	±20% / ±10%	Rated Power	0.05w
Max. Operating Voltage	250V AC Curve B:50V AC ;Other curve B:25V AC	Operating Temperature	-10 ~ 60 ℃

name: jiangsu 12mm volume control rotary 5k ohm linear potentiometer with 6 pin

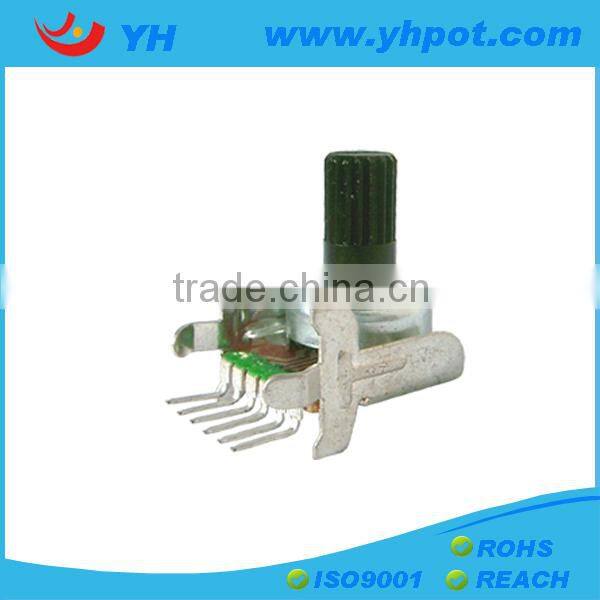

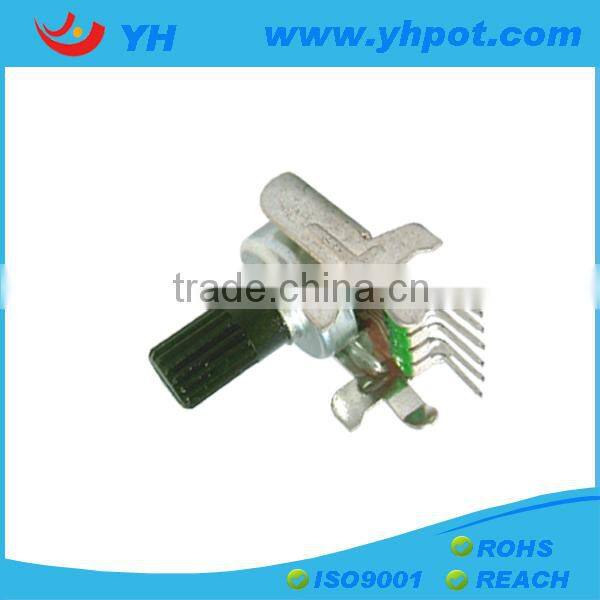

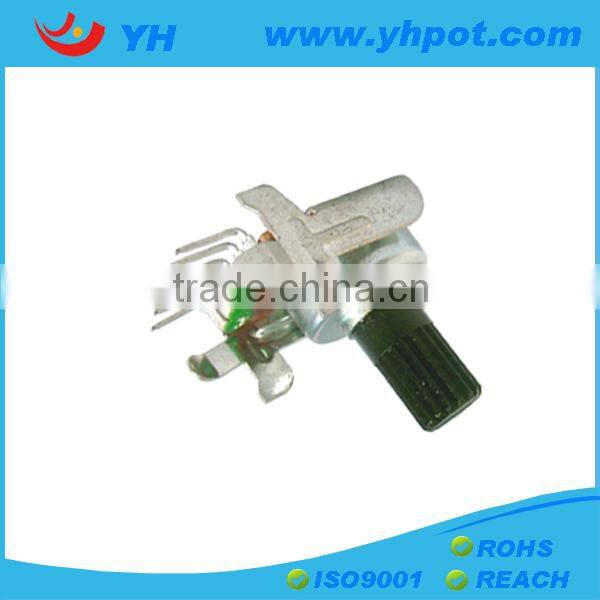

Product display:

Product specifications specifications:

Mechanical specifications:
Total rotation angle:	300°±10°
Rotation torque:	5~25mN.m(50~250gf.cm)
Shaft stop strength:	0.4N.m(4Kgf.cm)
Switch working angle/stroke:	≤50°
Click position:	0/32/40detent
Switch operating torque:	50-300gf.cm

Electrical specifications:
Total resistance:	1KΩ~500KΩ
Resistance taper:	A,B,C
Resistance tolerance:	±20% or ±10%
Rotational noise:	≤47mV
Residual resistance:	R≥250KΩ 0.1% max.of totalresistance 250KΩ>R>10KΩ 20Ω max. 10KΩ≥R 10Ω max.
Rotary toque:	30-200gf.cm
Rated wattage:	0.05W
Switch rating	DC 16V 1A
Dielectric:	AC300V,1 minute
Insulation resistance:	≥100MΩ at DC250V
Operating Temperature:	-10 ~ 60℃
Durability:
Rotary life:	10,000cycles

Common problems:

Q:	What is your MOQ of this item?
A:	1000pcs.
Q:	Where is your loading port?
A:	Shanghai port or other port in China.
Q:	What is your payment term?
A:	TT in advance or LC at sight.
Q:	What is the lead time?
A:	Normally 15~20 days.
Q:	What is your company’s available production capacity?
A:	35000PCS/day.
Q:	Could you provide sample?
A:	Of course,we are glad to provide free sample to you.

...
