Product Details
| Place of Origin | Guangdong, China | Brand Name | sfleds | |
| Model Number | sfleds-uv265-5050 | Type | LED | |
| Package Type | Surface Mount | Max. Forward Voltage | 5.5-8.0 | |
| Max. Reverse Voltage | N/A | Max. Forward Current | 20mA | |
| Max. Reverse Current | N/A |
Product Description

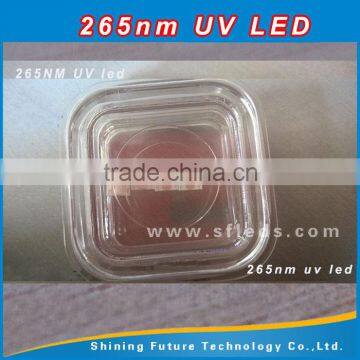

260 nm 265 nm 280 nm UVC Led For Water Disinfection
Specifications
SMD5050 265nm UV LED For sterilization:
Optical output power: 0.2-0.5mW
Wavelength : 265nm
Viewing angle:140 degree
Specification of 2655nm uv led
| Part number | Dimensions | Wavelength | Optical power | Forward voltage | Forward current | Viewing angle | Application |
| sfleds-UV265-5050C-A | 5.0*5.0*1.0 | 265nm | 0.2-0.5mW | 5.5-8.0V | 20mA | 140deg. | Sterilization for surface/water/air Fluorescence for detecting |

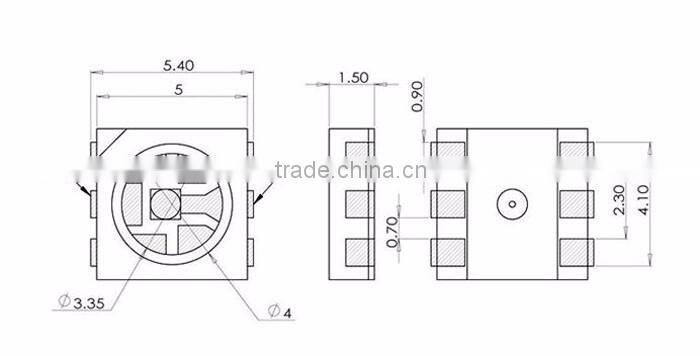

Outline Dimension of 265nm uv led(mm):

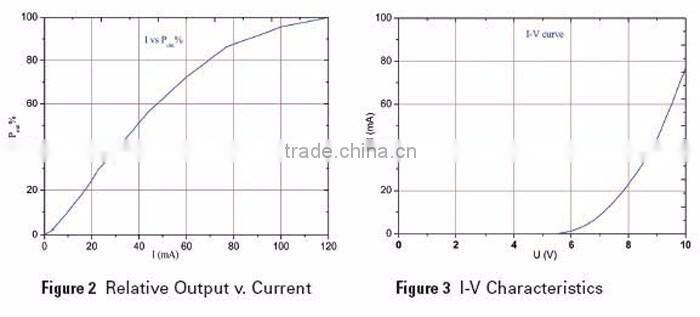

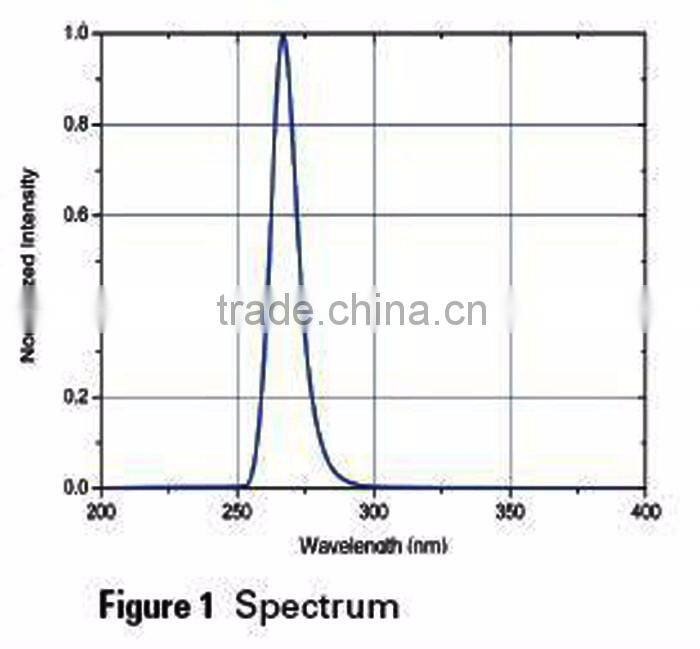

Electro-optical Characteristics (T=25°C;IF=20mA)

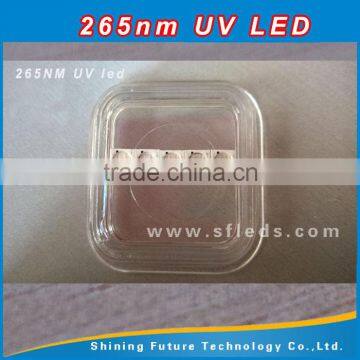

Packaging:

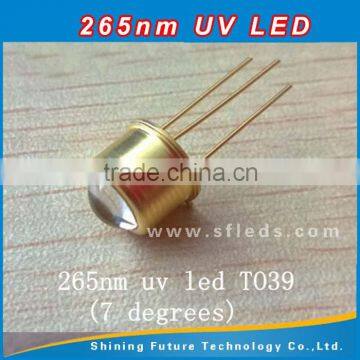

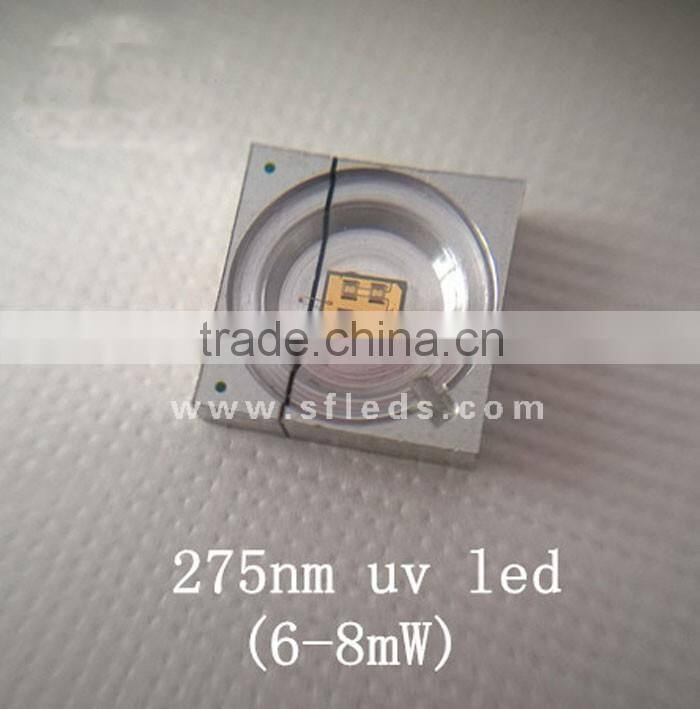

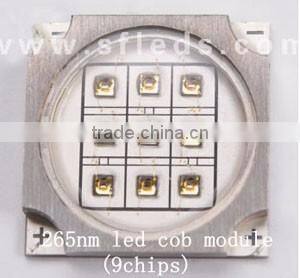

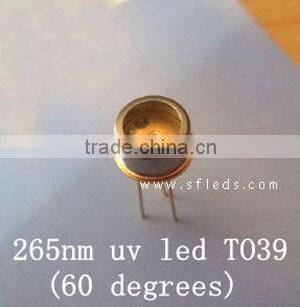

More uv led:



Application list of UVLED :
Optical sensors and instruments (230-400nm)
UV authentication, barcode (230-280nm)
Surface water sterilization (240-280nm)
Detection and identification and analysis of body fluids (250-405nm)
Medical sterilization (254-280nm)
Protein analysis and drug discovery (270-300nm)
Medical light therapy (300-320nm)
Polymers and inks (300-365nm)
Multinational paper money sorter (365-375nm)
Leak (look for tiny cracks) (365-375nm)
Distinguishing (375-395nm)
Counting Detector (375-395nm)
Photocatalyst technology (375nm-400nm)
Surface sterilization / Beauty sterilization (390-410nm)
Nail (nail polish / light therapy cure) (nail polish: 395nm; extend phototherapy A: 360-370nm)
