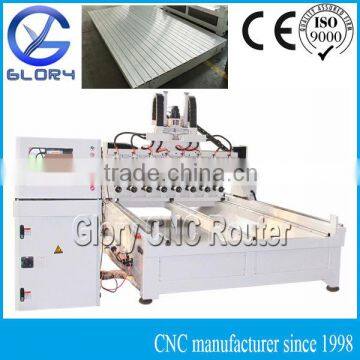

8 Spindles Multi Rotary CNC Machine
- Qingdao/Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Glory | |
| Model Number | GY-MS3020K8 | Voltage | 220V/380V | |
| Power(W) | varied | Dimension(L*W*H) | 3900*2800*2600MM | |
| Weight | 2300kg | Certification | CE, ISO | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
multi rotary cnc machine1.High efficiency with 8 spindle
2.Movable T slot table
3.Two functions
| 8 Spindles Multi Rotary CNC Machine |
|---|
 |
| Highlight | |
|---|---|
| GY-MS3020K8 is a multi-function cnc router. T slots table can be loaded it you need it to engrave/carve/mill/drill the flat work piece. When it comes to the 3D cylinders work, you just have to unload it and manually adjust the rotary length. | |
| Product Features | |
| 1. | Spindles can work synchronously and the distance between every two spindles can be manually adjusted. |
| 2. | Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. |
| 3. | The machine adopts gantry movement, suitable for batch processing small work piece. |
| 4. | Well compatibility: CAD/DAM designing software e.g. Type 3/Artcam/Castmate/Wentai/AutoCad/PowerMill/UG/Alphacam, etc. |
| 5. | This machine has the function of re-carvingafter break point or power failure and it can estimate the processing time. |
| 6. | Adopting advanced NC Studio/Weihong computer system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line. |
| 7. | Three axes adopt Taiwan Hiwin 30mm linear guide rail with high precision. |
| 8. | Z axis adopts imported Germany or Taiwan made ball screw, so high precision and long life time using are assured. |
| 9. | Manual oil-injection system allows the machine maintenance mush easier. |
| 10. | High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance. |
| 11. | We will provide you several kinds of software for free, with English and multilingual versions. Also you will get the picture storage with thousands of 2D and 3D designs. |
| 12. | Along with the machine, some spare parts, work fixtures and tools will be packed into the tool box. |
| Main Parts |
|---|
|
|
|
Technical Parameters | |
|---|---|
Working Area (X Axis) | 2000mm |
Working Area (Y Axis) | 3000mm |
| Clearance (Z Axis) | 300mm |
| Rotary Working Diameter | 250mm |
| Rotary Working Length | 3000mm |
| Spindle | 2.2kw water-cooled |
| Spindle Speed | Adjustable 0-24,000 rpm |
| Tool Change | Manual Tool-Change |
Drive System (X & Y Axes) | Helical Rack & Pinion, 1.25 module |
Drive System (Z Axis) | Taiwan ball Screw |
| Drive Motors | Four sets Japanese Yaskawa servo motor |
| Inverter | Fuling |
| Driver | Yaskawa |
| Command | G code |
| Cutter diameter | 3.175-12.7mm |
| Maximum Travel Speed | 35m/min |
| Table Top | Aluminum T-slot table protected with PVC |
| Controller | NC Studio/Weihong 74A |
| Power Requirements | 3-phase 380V/50HZ We can change it to customers' local voltage according to different countries |
| Options | 1.Less spindles 2.Automatic oil lubrication 3.Syntec controlling system 4.Customized table size 5.Higher spindle power etc |
| Application |
|---|
| 1. Timber/wood/foam/bamboo cylinders, etc. |
| 2. Flat board and rare shaped work piece with material like timber, MDF, plastics, soft metal, acrylic,PVC and so on. |
| Samples |
|
|
| FAQ |
|---|
| 1. I never use this kind of machine before, is it easy to learn? |
User-friendly English manual and operation video will be sent together with the machine. If there is still any question, we can talk through phone or Skype. |
| 2. If the machine has problems, what can you do to help? |
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone. Our after-sales staff can come to your workshop if the problem still can not be fixed. |
| 3. How could I know if this machine is suitable for me? |
Before ordering, we will provided every details of the machine for your reference, or you could tell us your work piece, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided. |
| Related Machines |
|---|
|
| Service and Guarantee |
|---|
1. Technical supports and suggestions before you order a machine according to your work piece. |
Part Replacement |
Customers have to send the broken parts to us within one week to our factory address: |
| Package&Factory |
|---|
|
| Contact information |
|---|
|
We can chat online if you like. My Skype: jeanh007 Welcome to visit our factory at any time. : ) LinkedIn&Facebook: Jinan Glory Import and Export Trading Co.,Ltd |
