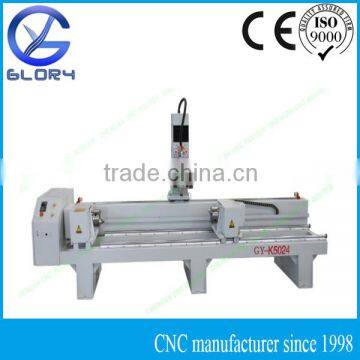

Woodworking CNC Turning and Milling Machine
- qingdao
- Credit Card
You May Like
-
CNC Wood Turning and Milling Lathe Machine
-
Mini CNC Wood Turning and Milling Machine
-
CNC Wood Turning and Carving Lathe With 4.5KW Spindle
-
Mini CNC Wood Turning and Milling Machine For Rotary Wood
-
CNC Wood Turning and Carving Lathe With Rotary Dia. 300mm
-
Mini Woodworking CNC Wood Turning and Milling Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Glory | |
| Model Number | GY-K5024K | Voltage | 220V, 380V | |
| Power(W) | 4.5KW | Weight | 1000KG | |
| Certification | CE,ISO | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
cnc rotary mould making machine1. Rotary Axis
2. 4.5kw water cooled spindle
3. DSP controller
4. Stepper
Woodworking CNC Wood Turning and Milling Machine
Features:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
2. Professional used for wood turning and wooden cylinder engraving, for table legs, stair railing (banisters), etc. wood cnc turning lathe
3.Adopting advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
4. Adopt Germany ball screw and imported linear orbit/guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack.
5. Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel.
7. One time tool setting to finish the whole work piece.
Description | Parameter |
Max working diameter | Φ300mm |
Max working length | 1500mm |
Machine dimension | 1000*1200*2610mm |
Accuracy | 0.01mm |
Max rotating speed | 1450r/min |
Max idling speed | 20m/min |
Max working speed | 10m/min |
Motor | Stepper |
Axis | X and Y axis |
Voltage | AC 380V/50Hz, 220V for option |
Command | G code, hpgl, U00, mmg, plt |
Operating system | DSP handle |
Software | Type3, Artcam, etc. |
Optional parts:
1. More rotary axis
2. Spindle
3. Different power requirement
4. Upgrade controller
5. Servo motor
6. Bigger working diameter and length, etc.
