HR18 Series Fuse Type Isolating Switch
- Ningbo
 - T/T

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | qiantai | |
| Model Number | HR18 | Max. Current | 160A~630A | |
| Max. Voltage | 690V |
Product Description
Specifications
FUSE SWITCHAC800V,RATED OPERATING VOLTAGE 690V,400V,RATED FREQUENCY50HZ,RATED CURRENT 160A-630A

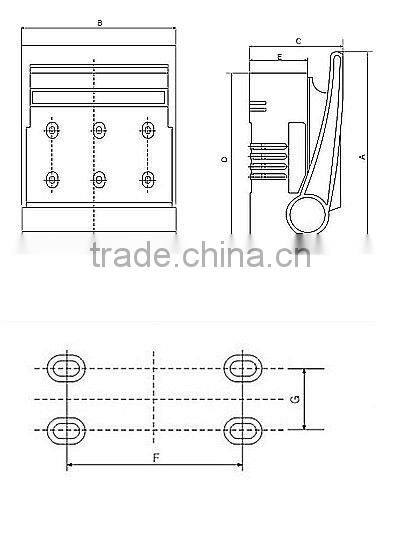

| Model | Extemal Dimension and Installation Dimension | Fuse-link | ||||||
| A | B | C | D | E | F | G | ||
| HR18-160 | 184 | 105 | 88 | 160 | 43 | 73 | 25 | NT00 |
| HR18-250 | 268 | 184 | 116 | 230 | 66 | 115 | 50 | NT1 |
| HR18-400 | 285 | 210 | 129 | 256 | 81 | 140 | 50 | NT2 |
| HR18-630 | 328 | 250 | 138 | 315 | 86 | 150 | 50 | NT3 |
HR18 series fuse type isolating switch:
rated insulating voltage AC 800V,rated operating voltage 690V,400Vrated frequency 50HZ,the rated current 160A-630A,mainly used as power switch,isolation switch and emergency switch with function of protection in the circuit with high short circuit current and motor circuit, this switch is not used to operate the single motor.
HR18 series fuse type isolating switch is coformity with standard GB14048.3-2002,IEC947-3(1999).
