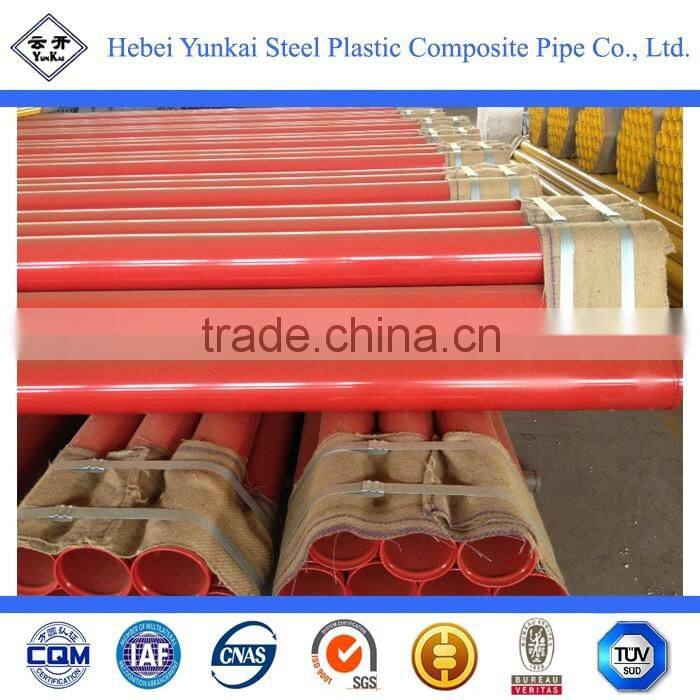

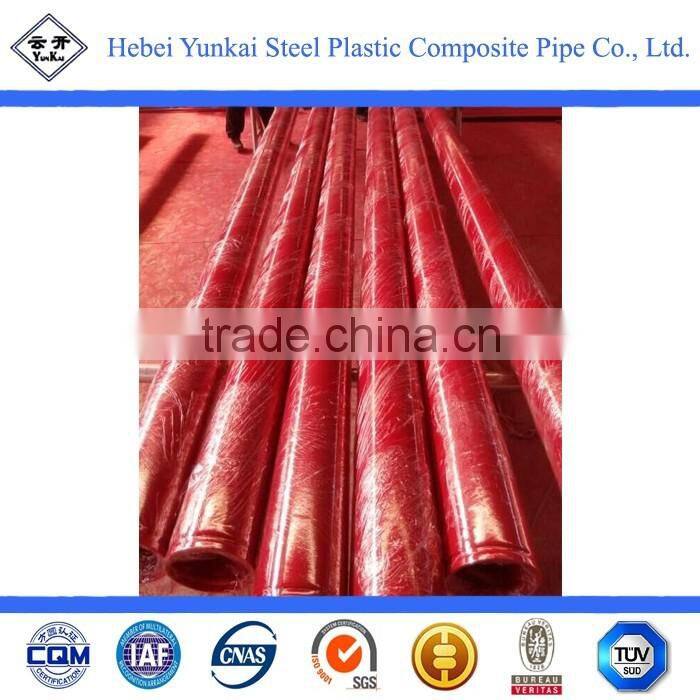

Fire Fighting Pipes

fire fighting pipes / Fire fighting water pipe

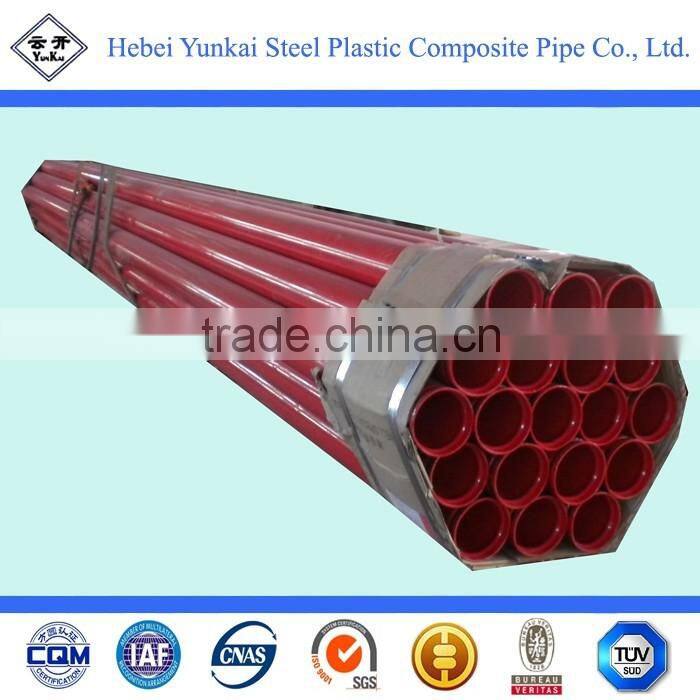

The pipe is a kind of composite pipe that is coat a special dusty material on the internal and external surfaces after the special fabrication processing of the basic pipes, so the pipe has excellent characteristic of high pressure resistance, antistativity, fire resistance, strong chemical corrosion resistance, etc.

Product color: red

Powder material: epoxy resin powder for fire control

Connection way: threaded connection for pipe fittings caliber«DN50

                          grooved connection for pipe fittings DN50<caliber«DN300

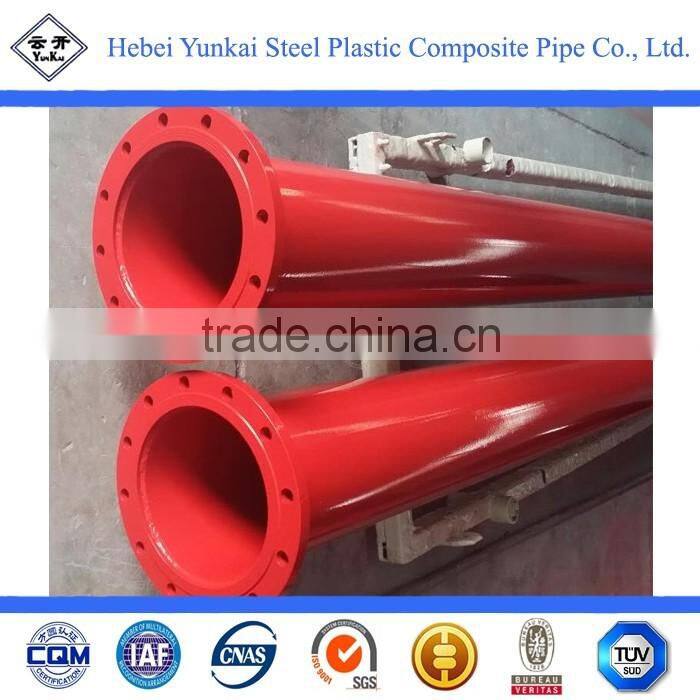

                          GB flange connection for pipe fittings caliber>DN300

Production standard: GB/T5135.20-2010

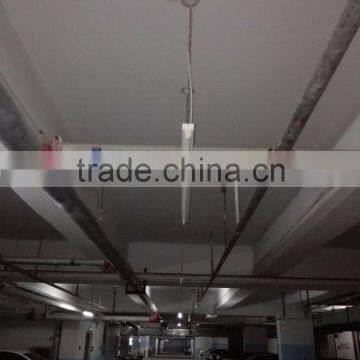

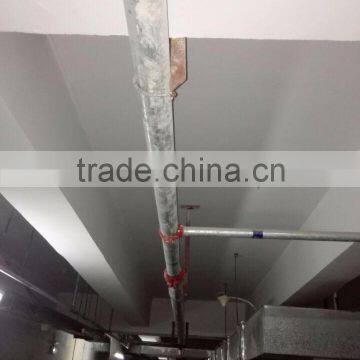

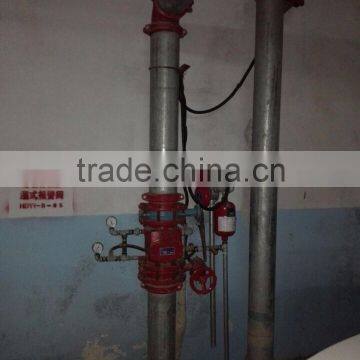

Production usage: fire-fighting water supply pipes

Firefighting pipe's product characteristics:

1. This kind of pipe uses special powder coating for firefighting pipe lines and has high thermal stability

2. The pipe has high mechanical strength and the smooth internal surface makes low fluid resistance

3. Good Chemical resistance (including water resistance, resistance to Alcohol resistant foam    extinguishing agent, resistence to protein foam extinguishing agent, resistance to high-expansion foam extinguishing agent ) avoids the corrosion of water ,soil, acid, alkali and salt. therefore, the service life can be prolonged up to 50 years.

4. Strong Coating adhesion

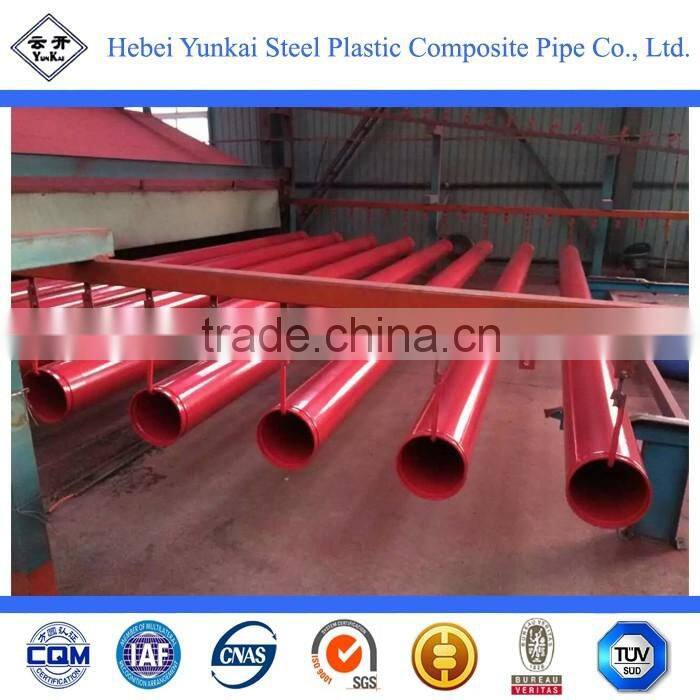

This kind of pipe adopts the physical advanced treatment technology and the pretreatment reaches the standard of sa2.5. The scientific and reasonable technology and advanced equipment ensure the quality of the coating and the adhesion is higher than the national standard obviously.

5. Nonodulation and no scale to make slight fluid resistance

The smooth coating surface has no scale and the coefficient of friction resistance and coefficient of roughness are both slighter than ordinary steel pipes. This kind of pipe belongs to economical and environmentally friendly product with high cost performance.

6. Flame retardancy and Antistatic ability

This kind of pipe adopts special mining power coating and the antistatic components are evenly distributed on the surface and the inner layer of the pipe. This kind complies with the requirements prescribed by the MT181 and applies to some specific flammable and explosive places such as mines, etc.

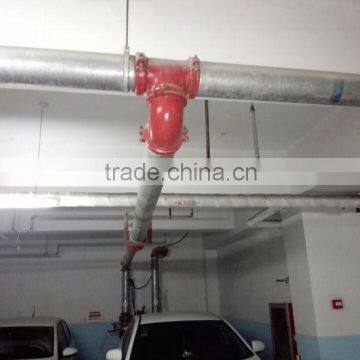

7.  Multiple connection ways to make convenient construction

This product adopts many connections ways like quick connector and flange to make the construction convenient and the performance reliable.
