Original Bridge Rectifier KBL401 50V 4A in Stock

FOB Price

US$ 1 - 1 / Pack

1 Pack(Min. Order)

Port ShenZhen & HongKong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Hottech
Model Number	KBL401	Type	Bridge Rectifier
Application	Inverter / Converter	Package Type	Throught Hole
Peak Repetitive Reverse Voltage	50V	Peak Non-Repetitive Reverse Voltage	/
Mean On-State Current	4A	Dimensions	KBL

Product Description

Features

Bridge Rectifier KBL401 50V 4A

High Reverse Voltage to 50V

Low Leakage Current

UL Recognized File # E157705

High Surge Current Capability

High Current Capability

Saves space on printed circuit boards

Ideal for Printed Circuit Boards

High Reliability

ROHS compliant, lead free

Qualifications: ROHS, ISO9001:2008, ISO14001:2004

Applications

Bridge rectifiers are largely used in Converters and inverters for electrical fields.

Main Characteristics

Product	Original Bridge Rectifier KBL401 50V 4A in Stock
Maximum repetitive peak reverse voltage	50V
Maximum RMS voltage	35V
Maximum average forward output rectified current	4A
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load	150A
Forward Voltage	1V
Operation junction temperature	125°c
Brand	Hottech, chinese supplier

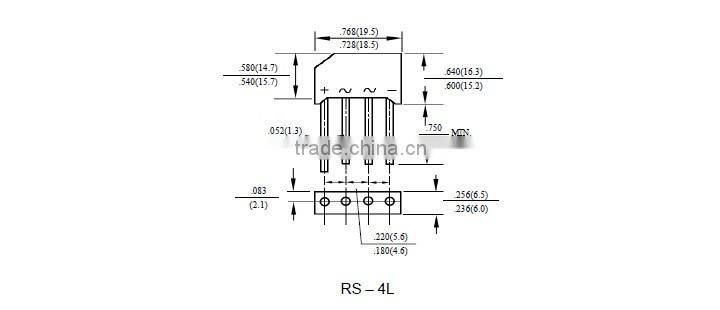

Case type	RS-4L, plastic
Mounting type	Through hole
Package	Tape/Reel
Packing reel	2,500 units per reel
Reliability	High Reliability
We manufacture all kinds of electronic components including Capacitors, Resistors, Diodes, Transistors and Mosfets with with excellent quality, best price and fast delivery.
