Home > Products > Passive Component > 0805 10UF 5% X7R 25V MultiLayer Chip Ceramic(MLCC) Capacitor.
0805 10UF 5% X7R 25V MultiLayer Chip Ceramic(MLCC) Capacitor.
US$ 1 - 1
/ Roll
1 Roll(Min. Order)
- ShenZhen & HongKong
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HKT | |
| Model Number | 0805 X7R | Type | Ceramic Capacitor | |
| Application | General Purpose | Package Type | Surface Mount | |
| Capacitance | 10UF | Rated Voltage | 25V | |
| Operating Temperature | '-55-125℃ |
Product Description
| Product Name: | X7R(J) 1206 10UF 25V LLCC Ceramic Capacitor |
| Model No.: | C1206 X7R 25V |
| Dielectric: | X7R |
| Size(Inch): | 0.12*0.06" |
| Capacitance: | 10NF |
| Norminal Capacitance Tolerance: | Plus-Minus 20%(M) |
| Rated Voltage: | 25V |

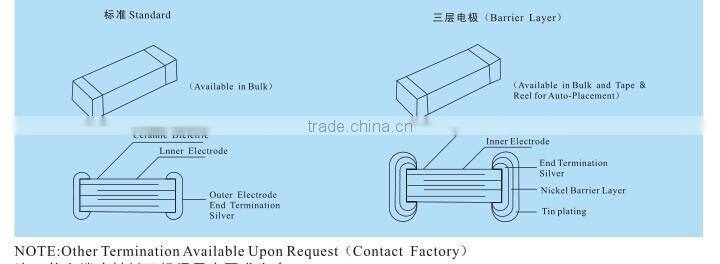

| Termination: | Silver(S) & Silver Nickel Barrier Tin Plating(N) |
| Brand: | HKT |
| Dissipation Factor(DF): | Less than or Equal to 3.5% |
| Insulation Resistance(IR): | More than 4000 M Ohm |
| Soldering Temperature: | 235 Plus-Minus 5℃ |
| Soldering Time: | 2 Plus-Minus1S |
| Soldering Cover: | More than or Equal to 95% |
| Operating Temperature: | -25-85℃ |
| Packaging: | Tape & Reel & Bulk |

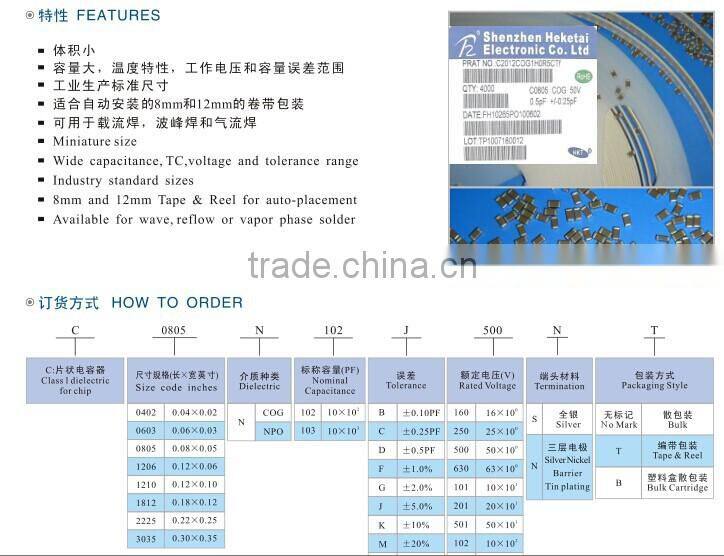

| Characteristics |
| *Mininature Size |
| *Wide Capacitance |
| *Temperature Characters |
| *Industry Standard Size |
| *8mm and 12mm Tape & Reel for Auto-placement |
| *Avaliable for wave,reflow or vapor phase solder |
Detail Specifacation
