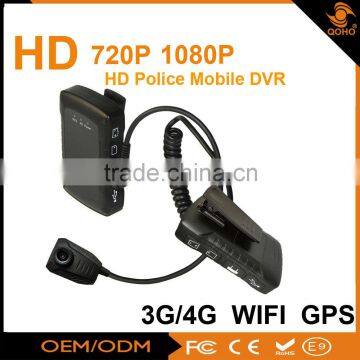

Newest 3G portable police camera recorder HD 720P 1080P
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
-
HD Police car Mobile DVR 720P 1080P GPS 3G WIFI Polcie MDVR
-
Police video Mobile DVR with earloop IR Camera waterproof buckle camera
-
2.4 Inch Portabble Police Video Recorder 3G / 4G /GPS / WIFI , 480 X 240 Resolution
-
4G GPS WIFI Police Mobile DVR with External IR Camera
-
Police Mobile DVR with External IR Camera
-
2.4" TFT Portabble Police Video Recorder With External Camera
Product Details
| Place of Origin | Guangdong, China | Brand Name | QOHO | |
| Model Number | QH-M8002DVR, Portable police camera recorder |
Product Description
Newest 3g portable police camera recorder
Product specification:
1. Professional waterproof and dustproof design (IP 57 protection level), it could prevent rainwater and dust enter.and it has shock resistance.
2. With the small and exquisite structure, reasonable weight,portable size. it could satisfy mobile duty and evidence obtaining for individual soldier. The separate design between host device and camera is suitable for handheld, waist-belt, shoulder-wearing and other multiple wearing types.
3. It has 3G or 4G insides, Wi-Fi communicating module. Besides, it supports wireless transmission, so centralized monitoring could be conducted by connecting the platform.
4. It is equipped with 1080P high-definition camera with external 135°ultra wide angle lens.
5. By adopting H.264 digital coding technique, it has high coding efficiency and large utility rate of storage space.
6. It has unique AP hot spot technique, so the mobile phone could connect with the device through Wi-Fi for watching shoot pictures on site. In addition, it could replay the videos and pictures in the device memory card.
7. It supports dual-stream transmission, one is used for local storage with high definition, and the other is used for network transmission
8. Equipping with GPS or Beidou positioning module inside (optional), it could position the device information accurately and upload the monitoring center
9. It supports dual-directional voice talkback between backstage and device.
10. It supports one-button alarming, at this moment the device will generate manual alarming and upload platform directly
11. It supports one-button snapshot and videotaping
12. It supports TF card storage, to the maximum of 64G
13. It is equipped with lithium battery (7.4V2200mAh) with high capacity inside. The continuous working hour is not lower than 4 hours
14. The professional monitoring platform software makes it equip with video surveillance, voice talkback, alarming receiving, map positioning, data storage and other functions
15. It supports mobile phone remote live view, Android, IOS mobile devices are applicable.
2. With the small and exquisite structure, reasonable weight,portable size. it could satisfy mobile duty and evidence obtaining for individual soldier. The separate design between host device and camera is suitable for handheld, waist-belt, shoulder-wearing and other multiple wearing types.
3. It has 3G or 4G insides, Wi-Fi communicating module. Besides, it supports wireless transmission, so centralized monitoring could be conducted by connecting the platform.
4. It is equipped with 1080P high-definition camera with external 135°ultra wide angle lens.
5. By adopting H.264 digital coding technique, it has high coding efficiency and large utility rate of storage space.
6. It has unique AP hot spot technique, so the mobile phone could connect with the device through Wi-Fi for watching shoot pictures on site. In addition, it could replay the videos and pictures in the device memory card.
7. It supports dual-stream transmission, one is used for local storage with high definition, and the other is used for network transmission
8. Equipping with GPS or Beidou positioning module inside (optional), it could position the device information accurately and upload the monitoring center
9. It supports dual-directional voice talkback between backstage and device.
10. It supports one-button alarming, at this moment the device will generate manual alarming and upload platform directly
11. It supports one-button snapshot and videotaping
12. It supports TF card storage, to the maximum of 64G
13. It is equipped with lithium battery (7.4V2200mAh) with high capacity inside. The continuous working hour is not lower than 4 hours
14. The professional monitoring platform software makes it equip with video surveillance, voice talkback, alarming receiving, map positioning, data storage and other functions
15. It supports mobile phone remote live view, Android, IOS mobile devices are applicable.
Specification:
| operating system | Embedded Linux system | |
| Video & Audio input | Video compression algorithm | H.264 |
| Video input | 1 way, micro camera (1080P) | |
| Audio compression algorithm | G711/ADPCM/AAC | |
| Audio input | 1 way, micro earphone | |
| Coding compression | Resolution for video coding | 1080P,720P,VGA,QVGA |
| Video frame rate | 1080p@30fps/720p@25fps | |
| Video code rate | 256Kbps~8Mbps | |
| Positioning function | Embed GPS or Beidou | |
| Storing | Type | micro SD (TF) card |
| Maximum capacity | 64G | |
| Wireless connection | 3G/4G network | TD-LTE:band 38/39/40/41 |
| LTE FDD:band 1/3/5 | ||
| TD-SCDMA:band 34/39 | ||
| WCDMA:band 1/5 | ||
| GSM:band 2/3/5/8 | ||
| WiFi network | Support 802.11b/g protocol,2.4GHz | |
| WiFi encryption | (WPA,WPA2,WEP encryption protocol) | |
| Network interface | USB interface | |
| Other parameters | LED indicator light | High light LED |
| Operating temperature | -20℃~+60℃ | |
| Operating humidity | 10%--90% | |
| Battery | 7.4V /2200mAh | |
| Continuous working hour | >4hours | |
| Protection level | IP57 | |
| Specifications | 103mm* 62mm* 24mm | |
Installation picture
CMS server(Center Management Software)
CMS viewer( Remote Live view in realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
FAQ:
Q: What can I do when I found a problem with the product, but I can not solve it by myself?
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
A: Take note of the model and software version number, then submit a detailed description of the problem to the technical supporting engineers to analyze; the more detailed you have submitted, the more convenient for us to analysize.
Q: How about when there is no video output from the vehicle host device?
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.
Q: How to do when the car host video input interface is different from the camera output interface?
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined by the car host.
Q: How to do when the device does not conduct video recording after it is turned on and SD card has already been installed?
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
A: 1.Check whether the SD card has been formatted or not after installation, because unformatted SD card cannot be used. Enter System Menu - System Tools - Device Format to format the newly installed SD card;
2. Check to see whether video channel is closed or not, whether set a timer recording or not, it will not take video when it is not within the video recording time period.
3.Check the SD card inserting status and whether the SD light on front panel is on or not.
Q: The video file is missing or there is no video file within a certain period of time, how to do?
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
A: 1. Determine the time period by analyzing the final video file before missing and the first video file after recovery.
2. Confirm whether the host is not on during that period of time, such as when the driver halfway parking, loading and unloading goods while the host is not set by video delay.
Q: When car PTZ cannot be controlled, it cannot rotate up and down, how to do?
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
A: Check whether PTZ protocols and baud rate are set correct, address codes are corresponding or not, whether have selected to maximize the video of the channel when control the PTZ, for example, when control the second channel, it must maximize the screen of the second channel image to control it.GPS-related issues.
Q: GPS module exists but no coordinate information?
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
A: 1.Check whether GPS module exists, if it does not exist, check whether the hardware is installed or in a good contact.
2.Make sure that the GPS antenna contacts are good, whether the antenna is broken, it is recommended to be located in places with strong signal, note that some car glass shielding film will block GPS signals;
3 If the test is in the room, the signal of GPS antenna in the room will be obscured, it is recommended that the GPS antenna is placed outdoor.
Q: Deviation of GPS location on map?
A: It means the signal is valid if the GPS module already positioned, there may many reasons for the deviation, such as government restrictions, permissible error, GPS signal interruption, etc; the actual satellite map may have deviation for security reasons, general map can solve the problem by using GPS correction.3G wireless module
A: It means the signal is valid if the GPS module already positioned, there may many reasons for the deviation, such as government restrictions, permissible error, GPS signal interruption, etc; the actual satellite map may have deviation for security reasons, general map can solve the problem by using GPS correction.3G wireless module
