Home > Products > Network Adapter > Sino-Telecom Quad-Port Fiber 10G Network Adapter with SFP+ Connectivity

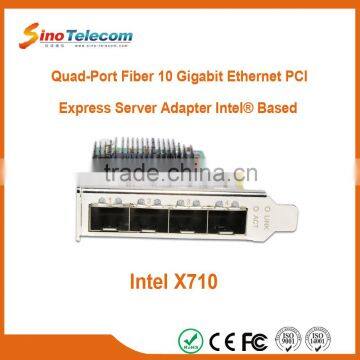

Sino-Telecom Quad-Port Fiber 10G Network Adapter with SFP+ Connectivity

FOB Price

USD $399 - $399 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Unit / Units per Month
Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Server
Type	Wired	Kind	Internal
Transmission Rate	10Gbps	Interface Type	PCI Express
Brand Name	Sino-Telecom	Model Number	NIC40G
Place of Origin	Shanghai, China

Product Description

Overview

NIC40G is a high-speed quad-port 10GbE fibre channel adapter with SFP+ connectivity, which is extremely flexible and scalable.

NIC40G is designed with multi-core processors, which realizes rapid deployment for the server. Flexible and scalable solutions can be provided according to client’s needs, so as to meet strict requirements for operation under the network and storage environments.

Intel X710 chip is adopted to address the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance.

Key Features

Dual and quad-port 10GbE adapters
PCIe Express* (PCIe) 3.0, ×8
Exceptional Low Power Adapters
Networking Virtualization offloads including Geneve, VXLAN and NVGRE
Flow Director for hardware based application traffic steering
Data Plane Developer Kit (DPDK) optimized for efficient packet processing
Excellent small packet performance for network appliances and Network Function Virtualization (NFV)
Intelligent offloads to enalbe high performance with Intel Xeon processor-based servers
I/O virtualization innovations for maximum performance in a virtualized server
Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)

Leading Performance

NIC40G adapter delivers superior performance with a theoretical throughput of 80 Gb/s (40Gb/s Tx; 40Gb/s Rx) bidirectional throughput (quad-port adapter required), in a PCI Express (PCle) v3.0 ×8 slot. Optimized performance vectors and key uses include:

Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>128 Bytes for 40GbE and >64 Bytes for 10 GbE.
Bull Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers
Virtualized Performance: Alleviates hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)
Network Virtualization: Network virtualization overlay offloads including VXLAN, NVGRE, Geneve, Network Service Headers (NSH)
Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB) and SAN (iSCSI and FCOE)

A Complete, Unified Networking Solution

Converging data and storage onto one fabric eliminates the need for multiple adapters, cables and switches. Furthermore both 10 and 40 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A key capability that makes all this possible is traffic class separation provided by Data Center Bridging (DCB)1--providing a one--wire solution with virtual pipes for the different classes of traffic:

Data: Best effort delivery of standard LAN traffic
Storage: Lossless network for FCoE and iSCSI
Management: Guaranteed connectivity of data center IP management

Power Savings

Power efficiency is critical to IT specialists as energy consumption is a real OpEX concern.

Lowest Power Consumption

The new generation of X710 adapters are power misers. They deliver double the throughput with only half the power of the previous X520 generation.

Energy Efficient Ethernet (EEE)

Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a “ready state” to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a “low power state” saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance.

Server Virtualization

With Intel® Virtualization Technology (VT), the X710 family of adapters deliver outstanding I/O performance in virtualized server environments. They reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near-native performance and VM scalability. The host-based virtualization technologies supported by Intel® VT include:

VMDq for Emulated Path: Adapter-based VM Queue sorting enabling efficient hypervisor-based switching

SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enabling optimal CPU usage in virtualized environments.

Additionally, X710 adapters provide Virtual Bridging1 support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation:

VEPA: IEEE 802.1Qbg support for Virtual Ethernet Port Aggregator

VEB: Virtual Ethernet Bridge support via Intel® VT

Network Virtualization

Network virtualization is the next big trend in creating an agile data center. The family of NIC 40G X710 adapters are ready to help you take that next step.

VXLAN, NVGRE, GENEVE, NSH Offloads2: These stateless offloads preserve application performance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores.

At the same time X710 offloads LSO, GSO, and check-sum from the host software reducing CPU overhead.

Manageability

NIC 40G adapter also incorporates the manageability required by IT personnel for remote control and alerting. Communication to the Board Management Controller (BMC) is available either through an on-board SMBus port or the DMTF-defined NC-SI, providing a variety of management protocols, including IPMI, BMC Passthru, OS2BMC, and MCTP/SMBus and MCTP/PCIe.

Ordering Information

Ordering Information

Model Name	Description
NIC20G	Dual-Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® Based
WNIC20G	Dual-Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter with WAN Connectivity Intel®based
CNIC20G	Dual-Port SFP+ 10 Gigabit Ethernet PCI Express Server Adapter for DPI Acceleration Application
NIC40G	Quad-Port Fiber 10 Gigabit Ethernet PCI Express Server Adapter Intel® Based

Product Category

Product Category

1. WDM Optical Transport System 2. Optical Line Protection Switch

3. xDSL 4. GPON/EPON

5. Lawful Interception 6. Network Interface Card

7. TAP 8. Wireless AP

Production Line

Production Line

Certifications

Certifications

FAQ

FAQ

1. What are your terms of payment?

Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.

3. How about the shipping?

Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.

4. How can I place an order?

(1) Agreement is achieved on the product price and product specifications.

(2) We make proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
