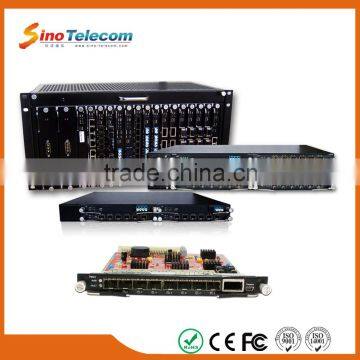

Sino-Telecom 10G OTU2 Muxponder
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Sino-Telecom Passive 40 Channel DWDM Multiplexer Mux / Demux
-
Sino-Telecom 1G 4-Channel SFP WDM Transponder
-
Sino-Telecom 10G 2-Channel XFP DWDM Optical Transponder
-
Sino-Telecom 10G 4-Channel SFP WDM Transponder
-
Sino-Telecom High Performance WDM System with Network Management System NMS
-
Sino-Telecom High Performance DWDM System Management Card with E1 Interface
Product Details
Place of Origin | Shanghai, China | Brand Name | Sino-Telecom | |
Model Number | OEO6500-TMUX-10G |
Product Description
Overview
OEO6500-TMUX-10G is the muxponder of 8*1.25G traffic into 1*10G interface, which can tremendously save room for DWDM modules and fiber resources, strengthen the stability, as well as save cost.
Basic Functions
- Provide 8 standard SFP slots and 1 XFP slot;
- 8 GE ports at the client side are isolated from each other;
- Support statistics on error packet of each port;
- Support loopback setting of the client side and the line side;
- Support SNMP network management;
- Adopt time-division multiplexing technology.
Performance Specification
Transmission Rate |
|
Client Side | 1000BaseFX,1000BaseTX |
Line Side | 10.3Gbps in private frame format |
Transmission Interface | |
Client Side | 8 pluggable SFP |
Line Side | 1 pluggable XFP |
Operating Environment | |
Temperature | -10 to 50 °C |
Humidity | 5 to 95% |
Power Consumption | |
Power Consumption of Boards | <15W |
