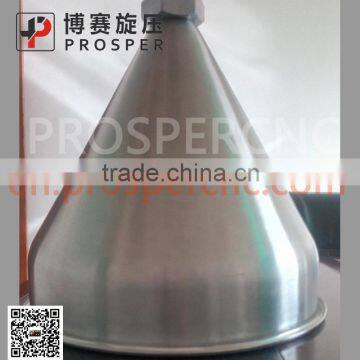

CNC metal spinning machine (funnel cnc metal spinning and bending machine PS-CNCSXY800)
USD $1 - $100,000
/ Set
1 Set(Min.Order)
- Shenzhen shekou port
- T/T
You May Like
-
Reflecting cover of lamps and lanterns PS-CNCsXY250 The lamps and lanterns industry spinning machine
-
heavy duty CNC metal spinning machine Iron spinning
-
cnc Venturi tube spinning ,CNC spinning machine metal spinning machine
-
fan machinery -cnc metal spinning machine(Large cover cnc metal spinning machine PS-CNCXY1650
-
Pipe fittings spinning processing Automatic spinning machines, CNC spinning machine metal spinning machine
-
heavy duty CNC metal spinning machine; Iron spinning Powerful CNC spinning machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | PROSPER | |
| Model Number | PS-CNCSXY800 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
CNC metal spinning machine main features
1.Best solution for small to medium diameter/thichness products
2.Excellent cost effective economical and practical
3.High stablility and efficiency
uce both material and human labor cost
5.High rate retur
6. Save both material and labor
Machine basic specification:
1.High strength cast machine body
2.Spinning tools(turret and rollers)
3.Heave duty guide and ball-screw
4.High torque/high speed spindle
5.Tools compensation device
6.Material centering device
7.Digital intergrated hudraulic system
8.Digital intergrated lubrication system
9.Optional BE units
10. Optional BA units
11. Optional manipulator
forming machine- metal spinning machine----- Prosper High-Performance full function CNC metal machine PS-CNCXY800 technical data :
| (Para) (Spec.) | PS-CNCXY800 | PS-CNCSXY800 | PS-CNCXY1250 | PS-CNCXY400 | |
| Max.Blank DIA(mm) | 800 | 800 | 1250 | 400 | |
| Max.DIA over slide(mm) | N/A | N/A | N/A | 200 | |
| Center height(mm) | 400 | 400 | 650 | 200 | |
| Center distance(mm) | 600 | 600 | 800 | 400 | |
| Main spindle power(KW) | 20inventer | 20 servo/inventer | 22/30servo/inventer | 7.5 servo/inventer | |
| Main spindle RPM(rpm) | 30-2000 | 30-2000 | 30-2000 | 10-3000 | |
| Travel | X-axis travel | DIA700 | DIA700 | DIA1000 | DIA420 |
| Z-axis travel | 500 | 500 | 800 | 500 | |
| Tailstock force(KN) | 25 | 25 | 60 | 10 | |
| Tailstock Travel(mm) | 600 | 600 | 1000 | 300 | |
| Hold plate Travel(mm) | 400 | 400 | 500 | 300 | |
| Positioning accuracy | 0.01 | 0.01 | 0.01 | 0.01 | |
| Hydraulic power | 5.5 | 5.5 | 5.5 | 2.2 | |
| Tool position(EA) | 4/8/1 | 2+2/1+1 | 4/8/1 | 6 | |
| Material thickness(mm) | Copper/Aluminum | 0.5-6mm | 0.5-6mm | 0.5-6mm | 0.5-2.5mm |
| Steel | 0.5-3mm | 0.5-3.5mm | 0.5-3mm | 0.5-1.6mm | |
| Stainless steel | 0.5-2.5mm | 0.5-3mm | 0.5-2.5mm | 0.5-1.2mm | |
