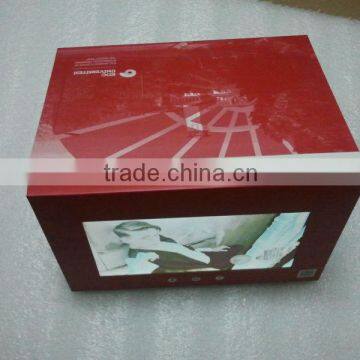

LCD video booklet, lcd tv book, lcd display brochures

Item

Description

Remarks

Switch

Magnetic switch or ON/OFF button switch

LCD Screen

Screen Size

Pixel Size

Aspect Ratio

1.8”

320 x 240

4:3

2.4”

320 x 240

4:3

2.8”

320 x 240

4:3

3.5”

320 x 240

4:3

4.3”

480 x 272

16:9

5”

480 x 272

16:9

7”

800 x 480

16:9

Function Control Buttons (Available If Required)

ON/OFF button

1

When adding buttons to the artwork, the centre of each button need to be at least 15mm from

the edge of the screen, the edge of the card,

or another button

Volume Up

1

Volume Down

1

Video Files

0-8

Play/Pause

1

Print Size

A4, A5, DL (12.7 x 17.7 cm)

Customized print sizes are accepted.

Print Solution

Please ensure all images are supplied in CMYK not RGB.

Number of Video Files

1-8

Memory

128 MB to 4 GB

Battery

Rechargeable battery

Lifespan

1.5h-3h

Mini USB Port and cable

1 USB port for uploading files and charging

Screen Placement

The screen outline can be moved within the boundary of the card, but must be at least 15mm clear of the edge of the card, the buttons and the USB port.

Speakers

Set Up

8OHM 2W

Output

2W

Maximum Volume

55dB

Optimum Volume

40 dB

Volume Presets

55 dB (if no volume buttons are selected)

Video Format

.avi, mp4, etc.

Boot Logo

Support a boot logo of the same pixels with the screen size.

Special Finishes

When supplying guides for special finishes, please create the area of the finish as a separate spot color within the artwork and rename in color palette to the chosen finish e.g. (Spot UV, foil, etc.) This must be made clear on the artwork to prevent mis-production
