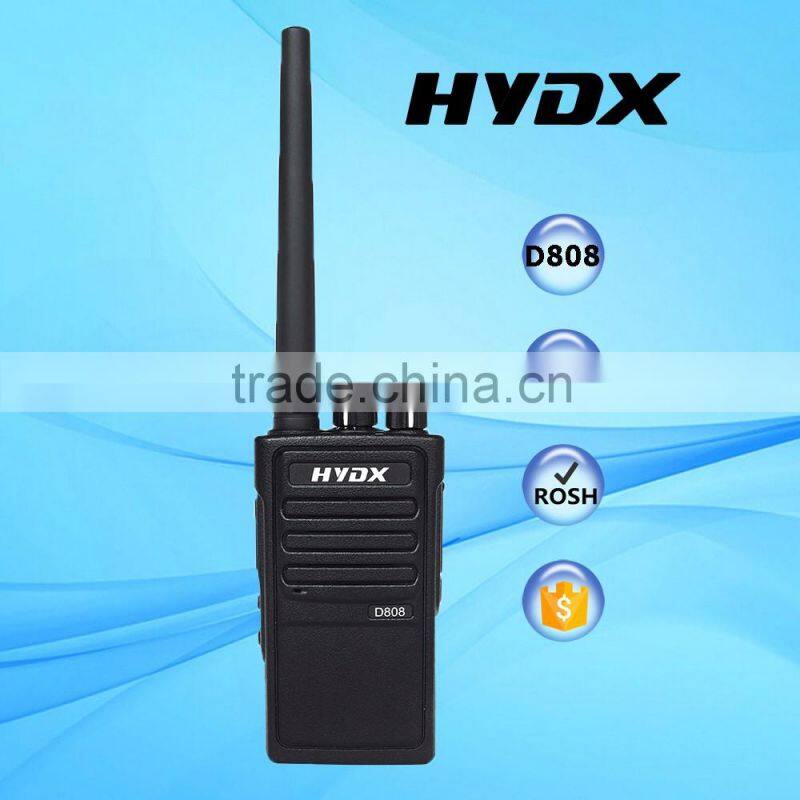

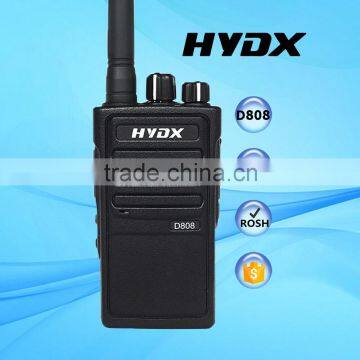

dPMR Handheld Radio HYDX-D808 AMBE 2C/SELP Vocoder walkie talkie

FOB Price

Negotiable / Set

2 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	Juston
Model Number	HYDX-D808	Type	Handheld
Dimensions	118(H)58(W)38(D)mm powerful professional walkie talkie	Frequency Range	400-480MHz/136-174MHz
Storage Channel	32	Talk Range	5km-10km

dPMR Handheld Radio HYDX-D808 AMBE 2C/SELP Vocoder walkie talkie

Product Description

Luxury Functions

Model No.	D808
Frequency Range	136-174MHz/400-480MHz
Channels	32 Channels
Channel Spacing	Wide:25Khz Narrow:12.5Khz
Zone	2
Antenna impedence	50Ω
Operating Temperature	-20℃~+50℃
Operating Voltage	DC7.4V
Battery Type	1600mAh Li-ion
Frequency Stability	±1.5PPM
Dimension(excluding antenna)	118(H)58(W)38(D)mm
Weight(Battery, antenna Included)	About 230g
Transmitter
Output Power	High≤5W Low≤1W
Analog Modulation System	11KΦF3E(12.5KHz)
Digital Modulation System	4SFK 8K30F1E(12.5KHz)
Adjacent Channel Power	≤-60dB
Digital Audio Encode&Decode	SELP/DVSI+2C
Spurious Radiation	Antenna:9KHz-1GHz≤-36dBm 1GHz-12.75GHz≤-30dBm
Modulation Distortion	≤ 5%
Receiver
Reference Sensitivity	≤ -123dBm(Ber≤5%)
Co-channel Rejection	≥ -12dB
Adjacent Channel Selectivity	≥60dB
Spurious Response Anti-Interference	60dB
Inter-Modulation	≥60dB
Spurious Radiation	Antenna:9KHz-1GHz≤-57dBm 1GHz-12.75GHz≤-47dBm
