Metallized BOPP Composite Material Film

FOB Price

Negotiable / Ton

2 Tons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	BOPP	Type	Other, Metallized Film, Metallized BOPP Film
Usage	Packaging Film	Feature	Moisture Proof
Hardness	Soft	Processing Type	Blow Molding
Transparency	Opaque	Place of Origin	Zhejiang, China
Brand Name	HNCY	Model Number	CY-03

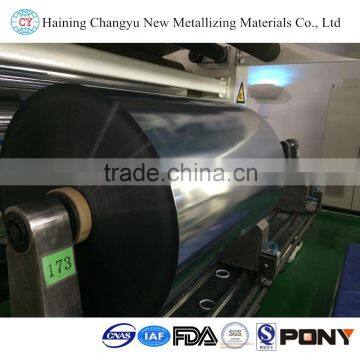

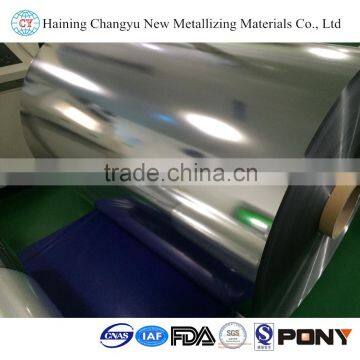

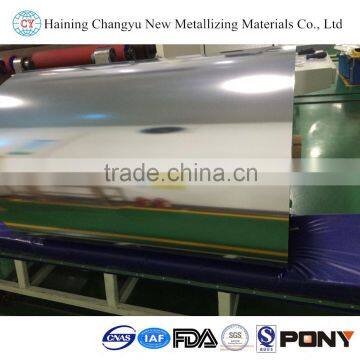

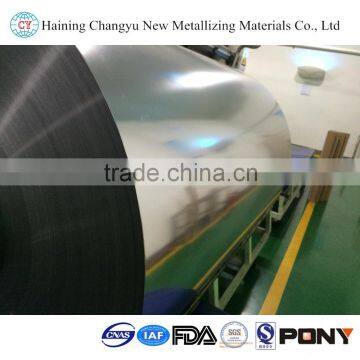

Metallized BOPP Composite Material Film

Product Description

Package usage:

It is applied to flexible package, decoration, label, adhesive tape, gift wrapping etc.

Products feature:

1. Good adhesion ability between bare film and aluminum layer

2.Excellent aluminum uniformity. Metallized BOPP Film

3.High gloss and good resistant property.

4.It has good heat sealing and printing property.

5.Can be well dry and extruded laminated with PE and CPP.

Specification:

Width	Thickness	Inner Core Diameter
≤2100 mm	18,20,25,28μm etc	76mm(3″),152mm(6″)

Special Features:

Test Item			Test Method	Unit	Standard	Test Results
Tension Strength		MD	GB/T 1040.3	MPa	≥120	136
Tension Strength		TD	GB/T 1040.3	MPa	≥200	262
Elongation Break		MD	GB/T 1040.3	%	≥180	165
Elongation Break		TD	GB/T 1040.3	%	≥65	59
Aluminum layer thickness			GB/T15717-1995	Ω/	≤3	1.98
Heat Sealing Strength			QB/T2358	℃,N/15mm	≥8	115℃(8.6N)
Haze			GB/T2410	%	≤5.5	1.04
Friction coefficient	Static		GB/T 10006	/	/	/
Friction coefficient	Dynamic		GB/T 10006	/	≤0.80	0.4
Dyne(PVDC coated side corona treated)			GB/T 14216	mN/m	≥38	48
Aluminum layer evenness			GB/T15717-1995	%	±13	-8.82~10.72
Moirture-vapor Transmission Rate			GB/T 1037	g/(m²·24h)	≤2.5	1.12
Oxygen Transmission Rate			GB/T 19789	cm³/(m²·24h·0.1MPa)	/	72.56

Packaging & Shipping

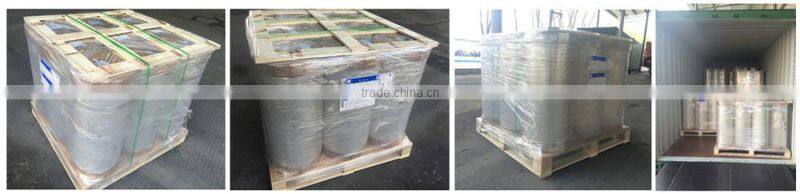

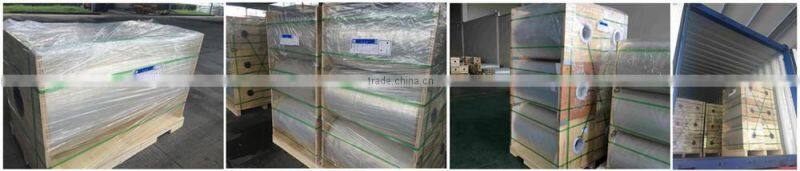

Package details

upstanding package

suspending package
