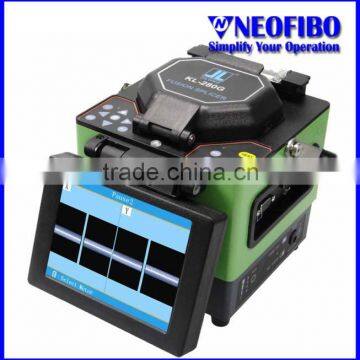

Jilong Fiber Optic Fusion Splicing Machine KL-280G jilong fusion splicer kl 280G

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Jilong
Model Number	KL-280G, KL-280G

Jilong Fiber Optic Fusion Splicing Machine KL-280G jilong fusion splicer kl 280G

Model: KL-280G

Place of origin: China

Key Features:

Core to core alignment by PAS technology

(PAS: Profile Alignment System)

Fiber core can be display clearly

Single X or Y view and X & Y view simultaneously

Auto check quality of cleaved end face

5.7 inch TFT color LCD monitor with clear digital image display

USB & VGA interface

Software upgrade via USB interface

Specification:

Model	KL-280G
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length	8~16mm(Coating diameter:250µm) 16mm(Coating diameter: 250 ~ 1000µm)
Fiber diameter	Cladding diameter:80 ~150µm Coating diameter:100~ 1000μm
Fiber Count	Single
Fiber aligning method	Core aligning
Return loss	>60dB
Actual average splice loss	0.02dB (SM),0.01dB (MM), 0.04dB (DS),0.04dB( NZDS)
Splicing mode	auto
Splicing mode	12(templet), 188(user)
Typical Splicing time	Typical 9 sec,with standard SM fiber
Protection sleeve length	60mm, 40mm and a series of micro sleeves
Storage of splice result	5000 results,3 parameter per result
Tension test	2N
Fiber display and magnification	400X(X or Y view),200X(X and Y view)
Tube heating time	Typical 30 sec
Electrode life	2500
No.ofsplice/heating with battery	Typical 130 cycles (splice/tube heat) with inner Li-battery
Display screen	5 inch color LCD monitor
Image change over	The fiber image is turned upside down
Terminals	RS 232
Operating condition	0 ~ 5000m above sea level,0 ~ 95%RH and -10~50°C,respectively,Max. wind velocity of 15m/s
Power supply	AC100-240VwithAC adapter;inner Li-battery(6600mAH)
Dimensions	150mm(L) x150mm (W) x160mm (H)
Weight	3.52 Kg including battery
