Product Details
| Place of Origin | Fujian, China | Brand Name | RONGTA | |
| Model Number | PM628 |
Product Description
58mm thermal kiosk printer module 90mm/s printing speed photointerrupter head-up detection PM628
main advantages:
1.Printing Method:thermal line(thermal mechanism RT628)
2.Paper width:58mm
3.Cutter:Guillotine(life:1,000,000cuts)
4.Printing speed:90mm/s
5.various function
detailed specification:
Printing method | Thermal-line dot method | ||
Printing speed | 90mm/second (max.) | ||
Dot structure | 384 dots/line | ||
Resolution | 8 dots/mm | ||
Dot pitch (Horizontal) | 0.125 mm (8 dots/mm)—Dot density | ||
Dot pitch (Vertical) | 0.125 mm (8 dots/mm)—Line feed pitch | ||
Effective printing area | 48 mm | ||
Number of columns | ANK 32 columns/line (maximum 12 x 24 dot font) | ||
Paper width | 57 mm | ||
Paper thickness | 60 to 85 μ m (some paper in this range may not be used because of paper characteristics) | ||
Power supply | For print head | 4.2 - 8.5 VDC ,average current 1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V) | |
For motor | 4.2 - 8.5 VDC,Maximum 0.46A | ||
For cutter motor | 5-9 VDC,Maximum 1A | ||
For logic | 2.7 - 5.25 VDC,Maximum 0.01A | ||
For Module | 5V-8.5VDC,Maximum 5A Rated Voltage:7V. | ||
Dimensions | Module | 84×36×52.5mm (W×D×H) | |
Weight | Module | 0.23KG | |
Life | Head | 100million pulses or more(print ratio=12.5%) | |
Cutter | 1,000,000 cuts | ||
Operating environment | Operating temperature | 0° C to 50° C | |
Operating humidity | 20 to 85% RH (no condensation) | ||
Storage temperature | -25° C to 70° C | ||
Storage humidity | 5 to 95% RH (no condensation) | ||
Detection function | Head temperature | Via thermistor | |
Head-up detection | Via photo interrupter | ||
Out-off-paper detection | Via photo interrupter | ||

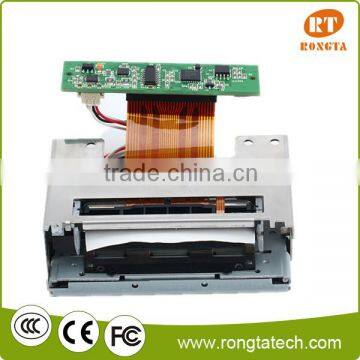

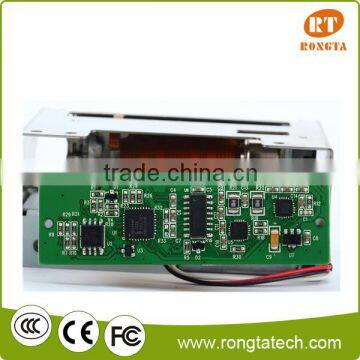

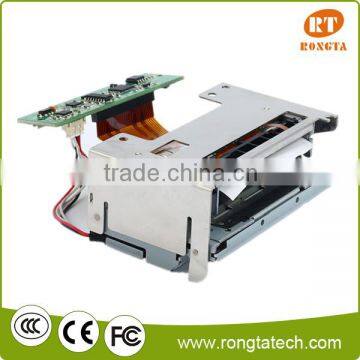

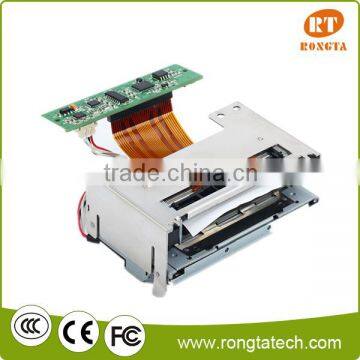

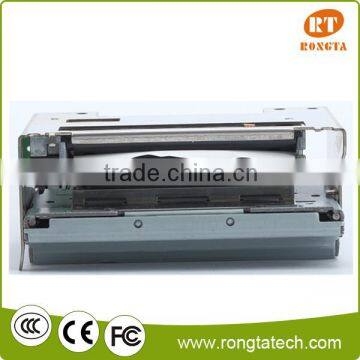

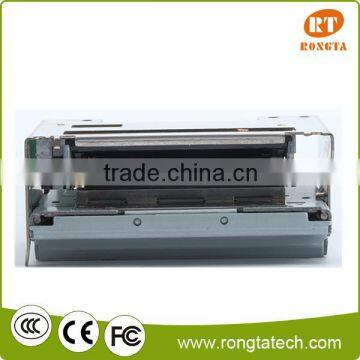

products show:
