Api Oil Drilling Pipe
- shanghai tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Senwell | |
| Model Number | Size | Type | Drill Pipe | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, High Manganese Steel, G105,S135,X95,Grade E etc. | Processing Type | Forging | |
| Use | Well Drilling |
Product Description

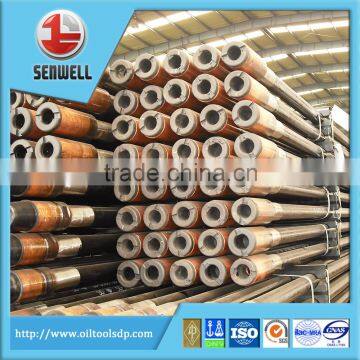

Api oil drilling pipe
Usage: As the major part of drill stem, drill pipe connected with Kelly and drill collar, which is used to put torqueto drill bit and drill collar.
Material: G105, S135, X95, Grade E etc.
Standard: According to API Spec 5D standards. ALSO WE CAN SUPPLY DS-1 and NS-1 STANDARD.
Hard band: Arnco100XT, Arnco200XT and Arnco300XT; Botn1000, Botn3000, TCS8000, TCS-Titanium, Armacor M etc. Also we can make according to customers’ requirements.
Internal coating: DPC, TK34, TK34P, TK34XT, TC2000, TC3000
Size: OD 2 3/8”----6 5/8”
Length: R1: 5.49-6.71m, R2: 8.23-9.14m, R3: 11.58-13.72m
Upset style: IU, EU, IEU
Detail Specification:
Technical specification and parameters for Drill Pipe | |||||||||
Size | Weight Designation | Calculated Plain-End Weight | Outside Diameter | Grade | Wall Thickness | Upset Ends. For Weld-on Tools Joint | |||
Lb/ft | kg/m | in | mm | In | mm | ||||
2 3/8 | 6.65 | 6.26 | 9.32 | 2.375 | 60.3 | E,X,G,S | 0.280 | 7.11 | EU |
2 7/8 | 10.40 | 9.72 | 14.48 | 2.875 | 73.0 | E,X,G,S | 0.362 | 9.19 | IU or EU |
3 1/2 | 9.50 | 8.81 | 13.12 | 3.500 | 88.9 | E | 0.254 | 6.45 | IU or EU |
3 1/2 | 13.30 | 12.31 | 18.34 | 3.500 | 88.9 | E,X,G,S | 0.368 | 9.35 | IU or EU |
3 1/2 | 15.50 | 14.63 | 21.79 | 3.500 | 88.9 | E | 0.449 | 11.40 | IU or EU |
3 1/2 | 15.50 | 14.63 | 21.79 | 3.500 | 88.9 | X,G,S | 0.449 | 11.40 | EU or IEU |
4 | 14.00 | 12.93 | 19.26 | 4.000 | 101.6 | E,X,G,S | 0.330 | 8.38 | IU or EU |
4 1/2 | 13.75 | 12.24 | 18.23 | 4.500 | 114.3 | E | 0.271 | 6.88 | IU or EU |
4 1/2 | 16.60 | 14.98 | 22.31 | 4.500 | 114.3 | E,X,G,S | 0.337 | 8.56 | EU or IEU |
4 1/2 | 20.00 | 18.69 | 27.84 | 4.500 | 114.3 | E,X,G,S | 0.430 | 10.92 | EU or IEU |
5 | 16.25 | 14.87 | 22.15 | 5.000 | 127.0 | X,G,S | 0.296 | 7.52 | IU |
5 | 19.50 | 17.93 | 26.71 | 5.000 | 127.0 | E | 0.362 | 9.19 | IEU |
5 | 19.50 | 17.93 | 26.71 | 5.000 | 127.0 | X,G,S | 0.362 | 9.19 | EU or IEU |
5 | 25.60 | 24.03 | 35.79 | 5.000 | 127.0 | E | 0.500 | 12.70 | IEU |
5 | 25.60 | 24.03 | 35.79 | 5.000 | 127.0 | X,G,S | 0.500 | 12.70 | EU or IEU |
5 1/2 | 21.90 | 19.81 | 29.51 | 5.500 | 139.7 | E,X,G,S | 0.361 | 9.17 | IEU |
5 1/2 | 24.70 | 22.54 | 33.57 | 5.500 | 139.7 | E,X,G,S | 0.415 | 10.54 | IEU |
6 5/8 | 25.20 | 22.19 | 33.05 | 6.625 | 168.3 | E,X,G,S | 0.330 | 8.38 | IEU |
6 5/8 | 27.70 | 24.21 | 36.06 | 6.625 | 168.3 | E,X,G,S | 0.362 | 9.19 | IEU |
