Non Pressurized Solar Water Heater

FOB Price

US$ 70 - 200 / Set

1 Set(Min. Order)

Port XINGANG Port China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Other	Certification	CE, CSA, EMC, EMF
Capacity	150	Place of Origin	Shandong, China
Brand Name	SENTOC&OEM	Model Number	SENTOC -01

Product Description

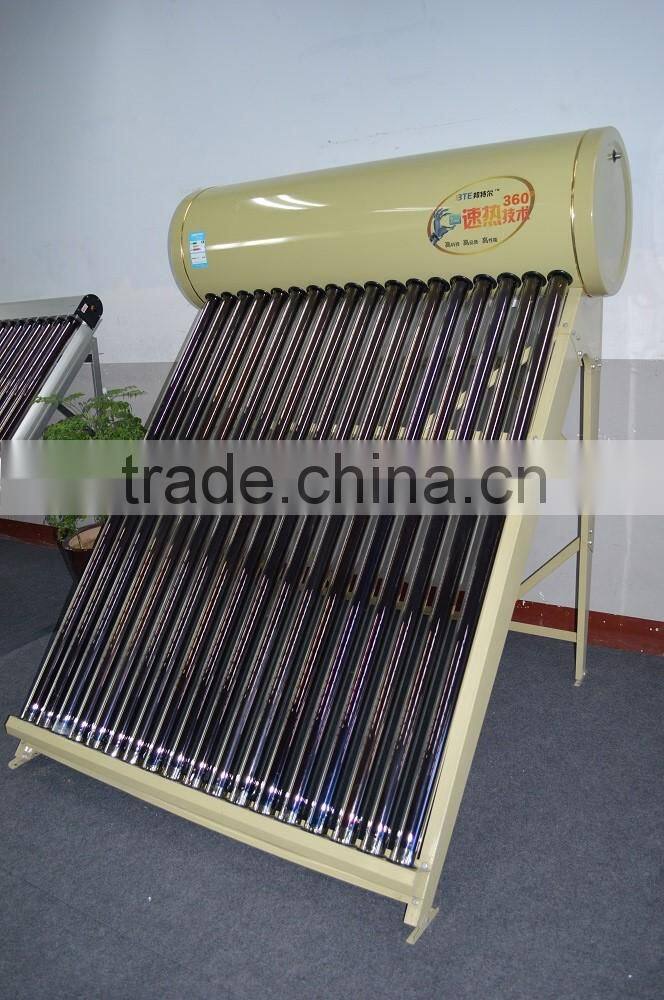

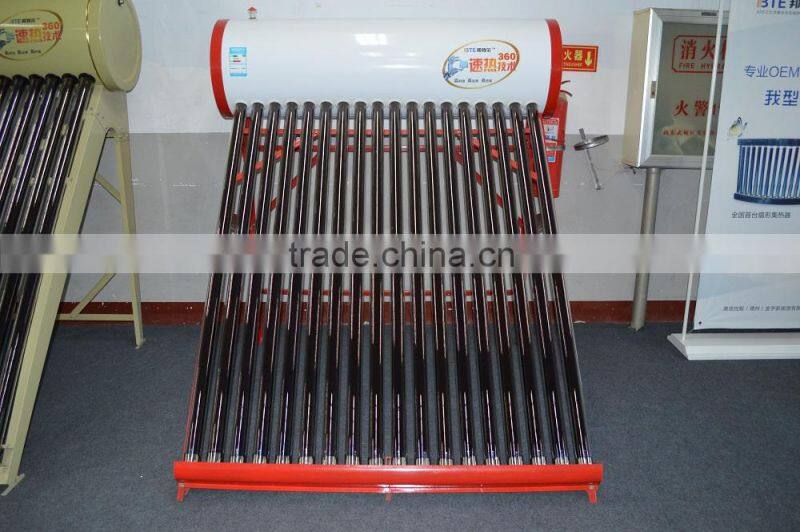

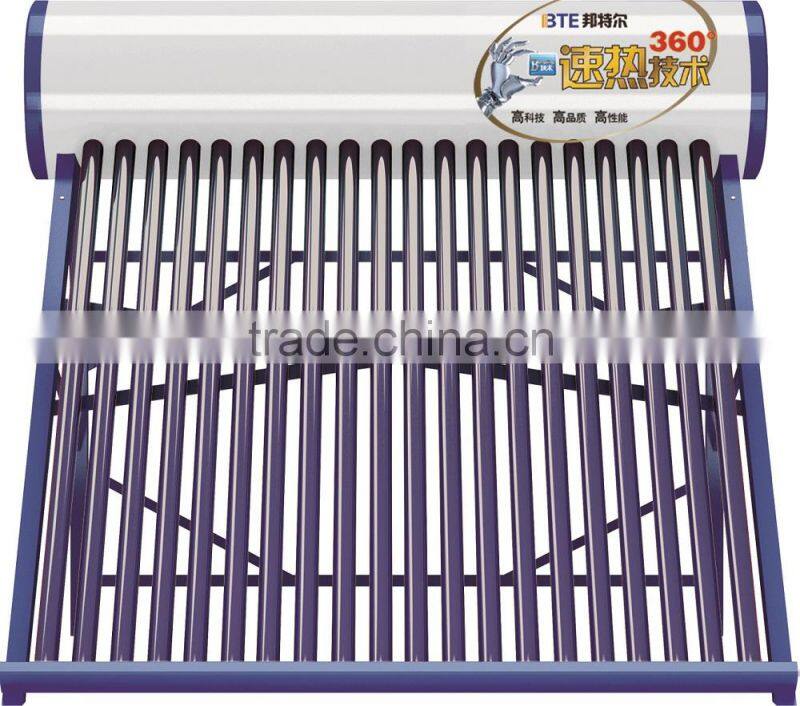

Non pressurized solar water heater

Model1	BTE5818-12	BTE5818-16	BTE5818-20	BTE5818-25	BTE5818-30
Model2 with Floating tank	BTF5818-12	BTF5818-16	BTF5818-20	BTF5818-25	BTF5818-30
Absorbing area(m2)	1.66	2.21	2.76	2.76	2.76
Tank capacity	120L	150L	200L	250L	300L
Vacuum tube	58*1800mm/three layer film/5.2x10^-4Pa/thickness of glass 1.6mm
Tube quantity PCS	12	16	20	25	30
Inner tank	Stainless steel SUS304/316L
Outer tank	Hot galvanized Plate/Stainless steel
Insulation	Polyurethane/Thickness50mm-62.5mm
Support	Hot galvanized Plate/Stainless steel/Aluminum
Tilt angle	21°/27°/33°/45°/50°
Electrical heating	Optional
Controller	Optional
Filling tank	Optional
Empty weight Kg	46	54	62	79	98
Qty. 20'/40’/	48/100/116	40/80/88	32/68/72	28/56/64	22/44/52

Working principle:

The evacuated tubes have two layers of glass tubes, the inner tube absorb solar radiation then convert into heat energy and transfer it to the water in inner tubes. As we know, the density of water in different temperature is different, so the hot water circulates to the water tank, cold water in tank flowing into tubes, through this natural circulation, the water will be heated.

The solar water heater tank is a non-pressurized tank, and has an opening to the ambient atmosphere. Solar water heater tank should always be filled with water to avoid damage caused by dry high temperature working conditions. The stainless steel our use belong to food grade, and SUS 304 & SUS 316 have better corrosion resistance.

Advantages:

The material of inner tank is stainless steel, good function of anticorrosion and long working life;
The material of outer tank is hot galvanized sheet steel with plastics-prayed surface, beautiful and durable;
The insulation material of manifold is polyurethane, keep energy in long time;
High quality evacuated tubes with triple layer selective absorber coating, vacuum degree≤5.2x10^-4Pa, absorbing efficiency≥92.5%;
Full automatic production line can realize your different requirements;
Working life≥20years.
