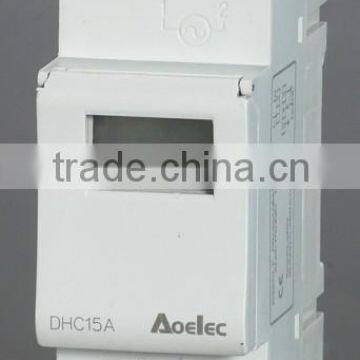

AUSDT Weekly programmable Time Switch

© WEEKLY PROGRAMMABLE ELECTRONIC TIMER

DIN Rail Installation

Advanced pre-setting one week before

Latest technology COMS quartz Mico-controller

Digital electronics general purpose time switch with daily and weekly programs

Repeat programs with 8 ON/OFF settings.

To-the-minute setting accuracy.

LCD display real time to Hour/Minute and ON/AUTO/OFF.

Technical Data

Voltage limit: AC180V~264V(50/60Hz)

Hysteresis: ≤1s/d(at 25°c)

On/off operation: 8on & 8off

Minimum interval: 1 minute

Weight: Approx 150g

Display: LCD

Battery backup: 150h

Number of circuits: 1c

Load capacity: 16A 250VAC(ohmic load cosΦ=1)

Service life:      Mechanically:10⁷

                        Electrically:10⁵

Ambient temperature:-10~55°c

Storage temperature:-20~70°c

Power consumption:  5VA

DIMENSIONS

OPERATING INSTRUCTION:

1.First time use this timer switch,please input AC and let battery recharge,after then press reset key.

2.At first time,the timer switch is in 24h mode.If you want change to 12 mode please press on "©"

key 5s,and LCD will display AM.If you want re-change to 24h mode,and press on "©" key 5s to return.

3.Programming:

For cancel engagements,press"MANUAL" then "--:--" is displayed on LCD to confirm cancel.May press "MANUAL" again to resume initial setting.

*10 deferent mode:(1.MO 2.TU 3.WE 4.TH 5.FR 6.SA 7.SU 8.MO TU WE TH FR 9.SA SU 10.MO TU WE TH FR SA SU)

**If you need not 8 time setting press " © "key to the end

4. CLOCK SETTING

(1) Press " © " and " D+ " together till correct date is shown.

(2) Press " © " and " H+ " together till correct hour is shown.

(3) Press " © " and " M+ " together till correct min is shown.

(4) Press " MANUAL " key to display ON AUTO or AUTO OFF.(If this clock in your program is ON selects ON AUTO,and this clock in your program is OFF selects AUTO OFF)

5.If you alway want to use time switch ON or OFF,Please Press "MANUAL" key to display " ON " or " OFF "

NOTE:

The power consumption of connected electrical appliances,shall be within.

The limitation of following rated capacity.
