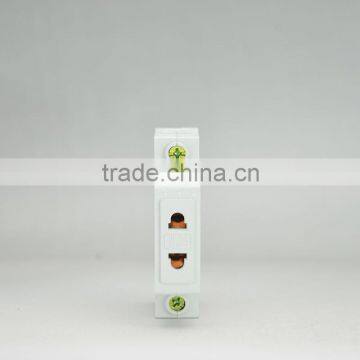

AC30-16/2 Din Rail Mounted Socket
- Ningbo/shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aoelec | |
| Model Number | AC30 | Type | Other, Distribution Socket | |
| Grounding | Standard Grounding | Rated Voltage | 230V/400V | |
| Rated Current | 10~16A | Application | Residential / General-Purpose |
Product Description
Specifications
AC30 Series Din Rail mounted Socket1.usd in office,family farmland,etc.
2.reliable contacts
3.slideway installed
Application:
AC30 series modular socket is suitable for using in the load circuit of voltage 250V/415V, AC50/60Hz,
rated current up to 25A, it form a complete set with the terminal electrical appliance, and is widely
used in building, mine enterprise, station,port, hospital, shop, office, laboratory, residence and so on.
The products comply with the standard: IEC60884-1, GB2099.
Technical Data
Frequency:50/60Hz Overvoltage category:III
Rated insulation voltage(Ui):500V Pollution degree:2
Rated impulse withstand voltage(Uimp):2000V Protection class:IP20
Dielectric test voltage at ind.Freq. for 1min:2.8kV Standard mounting:35mm Din Rail
| Type | Rated current(A) | Pole | Width(mm) | Rated voltage(V) | Connection capacity |
| AC30-10/2 | 10 | 2 | 18 | 230 | ≤16mm2 |
| AC30-16/2 | 16 | ||||
| AC30-10/3 | 10 | 3 | 36 | ||
| AC30-16/3 | 16 | ||||
| AC30/25/3 | 25 | 54 | |||
| AC30-16/4 | 16 | 4 | 54 | 400 | |
| AC30-25/4 | 25 | 72 |
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
