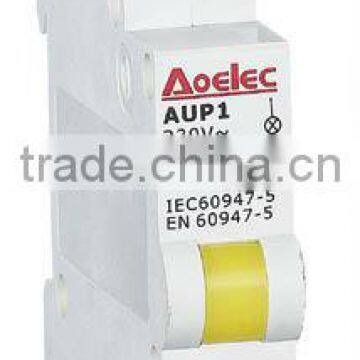

AUP1 with CE mark mini Led Indicator
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aoelec | |
| Model Number | AUP1 |
Product Description
Function and Feature:
The Modular Signal Lamp is applicable to circuit with rated voltage 230V~and
Frequency 50/60Hz for visual indication and warning
Technical Data:
Rated Voltage(Un):24/48/110/230VAC
24/48/110/230VDC
Rated frequency:50/60Hz
Number of poles:1P
Light source:LED diode
Rated insulation voltage(Ui):500V
Light Source capacity:0.8W
Colors:red/green/blue/yellow/transparent
Terminals:pillar type
Cable termination:25mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 60947-5-1
Catalog NO. CTN Size:46.5X24X17.5CM
| Color and Un | Type designation | QTY/Box | QTY/CTN |
| Yellow 24VAC | AUP1 AC 24V Yellow | 12 | 120 |
| Yellow 48VAC | AUP1 AC 48V Yellow | 12 | 120 |
| Yellow 110VAC | AUP1 AC 110V Yellow | 12 | 120 |
| Yellow 230VAC | AUP1 AC 230V Yellow | 12 | 120 |
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
