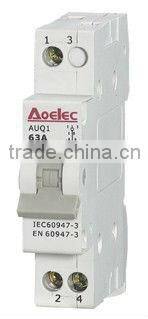

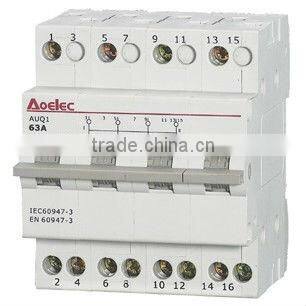

AUQ1 din rail mounting 32A Changeover Switch
- Ningbo/Shanghai
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AOELEC/OEM | |
| Model Number | AUQ1 | Max. Current | 40A | |
| Max. Voltage | 440VAC |
Product Description
Function and Feature:
Handle with 3 stage:I-O-II
Changeover switch with zero position in middle
Modularized and Din Rail mounting
Technical Data:
Rated Current(In): 6,10,16,20,25,32,40A
Rated Voltage(Un):230V/400V
Shell -grand Rated Current(In): 40A
Short-term Tolerance Rated Current:800A
Electrical endurance:10000 cycles
Mechanical endurance:20000 cycles
Numbers of Poles:1P,2P.3P.4P
Type of Terminal: Lug Type
Terminal Capacity: Cable up to 25mm2
Width: 17.6mm/module
Life: Operating cycle number 10000, which contained 1,500 (operating frequency
for the 120 / h)
Use Category:AC-22
Protection Degree:IP20
Standards: IEC60947-3
Catalog No. CTN Size:46.5x24x17.5cm
| In(A) | Model No. | QTY/Box | QTY/CTN |
| 6A | AUQ1 4P 6 | 3 | 30 |
| 10A | AUQ1 4P 10 | 3 | 30 |
| 16A | AUQ1 4P 16 | 3 | 30 |
| 20A | AUQ1 4P 20 | 3 | 30 |
| 25A | AUQ1 4P 25 | 3 | 30 |
| 32A | AUQ1 4P 32 | 3 | 30 |
| 40A | AUQ1 4P 40 | 3 | 30 |
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our Changeover Switch have KEMA,TUV,SEMKO,CB and CE certificates.
