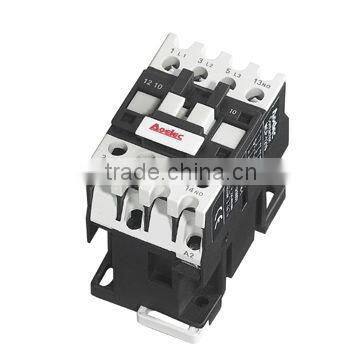

MCP-12 with Semko certificate types of AC Electric Contactor 48V coil

Application:

MCP AC Contactor is suitable for using in the circuits of AC 50Hz or 60Hz,rated insulating voltage 660V,rated operating voltage up to 690V,rated operating voltage 380/400V in AC-3 type,rated operating current up to 95A,for marketing,breaking,frequently starting & controlling the AC motor.Combined with the auxiliary contact block,timer delay & mechnical interlocking device etc.it becomes the delay contactor,mechnical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC60947-4.The product is Semko certified by INTERTEK.

Technical Data:

 Rated operating current(A):12A, 400V, AC-3

                                                  5A, 400V, AC-4

                                                  8.9A, 600V, AC-3

                                                  2A, 600V, AC-4

Rated working voltage(Ue):400V AC,660V AC

Rated operational power at AC3:230V,3kw

                                                           400V,5.5kw

                                                           660V,7.5kw

Conventional thermal current(Ith):20A(Main contacts)

                                                             10A(coil)

Rated control voltage:24V,48V,110V,230V,400V

Electrical endurance:1000000 times,AC3

                                      200000 times,AC4

Mechnical endurance:10000000 times

Protection degree:IP20

Number of pole:3P,4P

Number of auxiliary:1NO or 1NC,3P

                                     2NO+2NC or 4NO,4P

Standards:IEC60947-4-1,EN60947-4-1

Catalog No.                                                                      CTN size:42x26x20CM
