Home > Products > switching power supply > New product MS-120 with Good Quality* dc adapter industrial Switch Mode Power Supply with rosh, kc, 3c

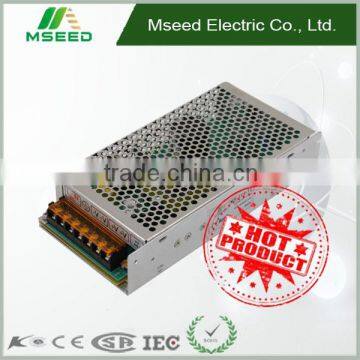

New product MS-120 with Good Quality* dc adapter industrial Switch Mode Power Supply with rosh, kc, 3c

FOB Price

USD $5.6 - $7 / Unit

100 Units(Min.Order)

Supply Ability 70000 Unit / Units per Month
Port Shanghai or Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Mseed
Model Number	MS-120	Output Power	Other, 120W
Output Type	Single	Input Voltage	Other, 90-130VAC/170-260VAC
Output Voltage	5V/12V/24V	Output Frequency	50Hz
Output Current	10A

Product Description

Product Details

Product Introduction

Quick details：

Place of Origin: Zhejiang, China (Mainland)
Brand Name: Mseed
Model Number:MS-120
Output Power: 120W
Output Type: Single
Input Voltage: 90-130VAC/170-260VAC
Output Voltage:5V/12V/24V
Output Frequency: 50Hz

Safety: IEC CE ROSH SAA KC 24v switching power supply
led switching power supply

Features

• Universal AC input / Full range
12v 100a switching power supply
• Protections:Short circuit/Over load/Over voltage

• Built-in cooling Fan ON-OFF control

• 100% full load burn-in test
5v 30a switching led power supply
• Fixed switching frequency at 25KHz
10w switching power supply
• Load stability +/-0.5%
12v 40a switching power supply
•Low ripple noise
50v switching power supply
•High withstand voltage insulation
dve switching power supply dso-142l
•Operation temperature high up to 70℃

•Meet EN61347 standard, CE certificates

* 2 years warranty

Parameters

	Model	MS120-12	MS120-15	MS120-24	MS120-36	MS120-48
Input	Voltage Frequency	170-260VAC, 47-63Hz; 240-370VDC
	Current	0.8A/230V
	Efficiency(AC220V)	73%	73%	75%	76%	76%
	Inrush Current	30A/230V 30A/230V at cold start
Output	Voltage	12V	15V	24V	36V	48V
	Current	10A	8A	5A	3.3A	2.5A
	Regulation Line	1%	1%	1%	1%	1%
	Regulation Load	1%	1%	0.5%	0.5%	0.5%
	Ripple Noise	≤120mVp-p	≤150mVp-p	≤240mVp-p	≤360mVp-p	≤480mVp-p
	Temperature Drift	±0.03% / ℃(0-50℃)
	Rated Power	120W	120W	120W	120W	120W
	Rise&Holding Time	1s, 100ms, 50ms
Circuit Protection	Over Current Protection	Works at over 105%-120% of rating and recovers automatically
	Over Voltage Protection	/
	Over-Heat Protection	/
Withstand voltage Insulation	Input-Output	AC1500V;500VDC/100MΩ
	Input-Case,FG	AC1500V;500VDC/100MΩ
	Output-Case,FG	AC500V;500VDC/100MΩ
Environment	Operating Temp and Humid	(-10)℃- (+60)℃, 20%-90%RH
	Storage Temp and Humid	(-20)℃- (+85)℃, 10%-95%RH
	Vibration	10-500Hz at 2G, 10minutes period,60minutes along X, Y and Z axis
Safety	Safety Regulation	IEC CE ROSH SAA KC
	EMC	IEC / EN60950-1 EN61347-1:2008
IP	IP	IP22

Dimension:

Applications

These products are Constant Voltage LED Drivers. For dimming purpose, please equip with compatible low voltage dimmer switches and arrange your circuit in the following sequence:

Mains – LED Driver – Low Voltage Dimmer – Low Voltage LEDs

Packing Details

Being packed according to the international standard is to guarantee safe delivery during the transportation.

Why Choose Us

•Professional manufacturer with internationally standard production lines and a devoted technical team.

•Strict test procedure with advanced test equipment

•Responsive and responsible service team.

•Door to door service when needed.

•Helpful and enthusiastic in developing the buyers’ business.

•Treat your career as our career.

Certifications:

Factory Details

Welcome to contact us:

For sales or information inquiry, please contact us in the following ways:

Mob:+8613588948309
Tel: +86-577-55770369
Skype:+8613588948309
Trade messenger: barbara ye
Website: http://mseed.en.china.cn
