JL Semi-automatic Stapler/Semi-Auto Sticher/Packing Machinery

FOB Price

US$ 12,000 - 12,000 / Carton

1 Carton(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Function	Boxing
Application	Other, Machinery & Hardware	Packaging Type	Film
Packaging Material	Plastic	Automatic Grade	Semi-Automatic
Driven Type	Electric	Voltage	380V
Power	6KW	Place of Origin	Hebei, China
Brand Name	JIALNG	Model Number	JL-3000
Dimension(LWH)	2500x1500x2000	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

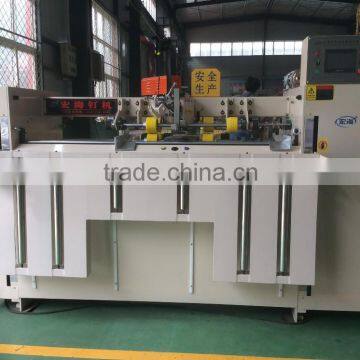

JL-3000 semi-auto carton box stitching machine ( two pieces)

1 A dual-purpose machine for single forming carton, double forming carton, irregular carton.

2. The size is full electrically controlled and it can be changed the size in 2-3min

3. The strengthened, single, double nailing can be finished in a lump.

4. Auto counting, after stacked, it will be au

Feature:

to packing.

5. Available for large carton, and nail-feeding is high speed and high efficiency

6. Nail from is free adjustable between 30-120mm, set by computer

7. It can do special box without cover

Use and Characteristics:

It can nail single nail double nail, strengthen nail completed in one-time, can be suitable for different kinds of customer requirement of nail.

It can be changed size quickly in one time, can be operated easily and not had to experience.

Paper feeding section can automatic counting, send after the bundle into the bundle.

Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99)

6.Semi-finished products nailing to the finished products displayed only need two operators. This can operate simply and reduce wages.

Model and parameter	SDJ-2000	SDJ-2400	SDJ-3000
Max corrugated paperboard(A+B)x 2 (mm)	4000	4800	6000
Min. corrugated paperboard(A+B)x 2 (mm)	1060	1060	1060
Max paperboard length mm	2850	2850	2850
Min. paperboard length mm	350	350	350
Max. paperboard width mm	1000	1200	1500
Min. paperboard width mm	180	180	180
Min. paperboard height(C+D+C) mm	400	400	400
Nail distance mm	30-120	30-120	30-120
Number of nails.	1-99	1-99	1-99
Nails speed nails/min	300	300	300

the single piece type:

If this item can meet your need,pl let me know which soze you need then will quote for you the best price
