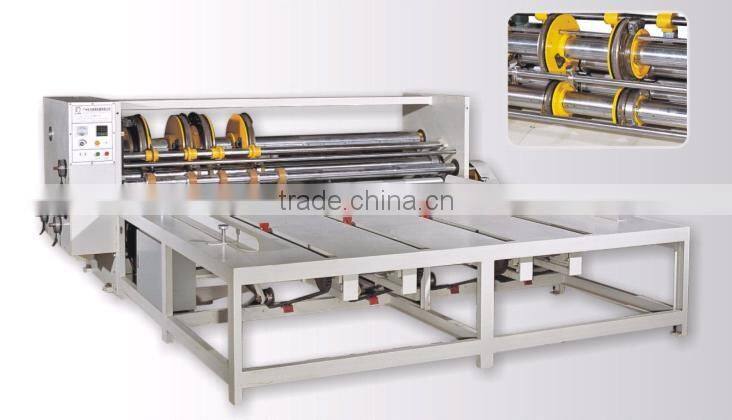

Electric Driver Type Semi Automatic Rotary Carton Box Slotter

Chain Feed Table Unit:

*Table by a welded steel plate and channel.Table plate thickness:3.7mm.Channel is China's

national standard of 10# channel steel.

*Table length 2380mm,4 to 5 groups feed chain.Each chain has three push feeder.

*Configuration 2 side cover.Made with 5# angle iron.

*The forefront of the table with platen spring.Flexographic printer new multicolor semi-automatic letterpress paper printer chain machine.

*Automatic measurement of the number of cardboard.

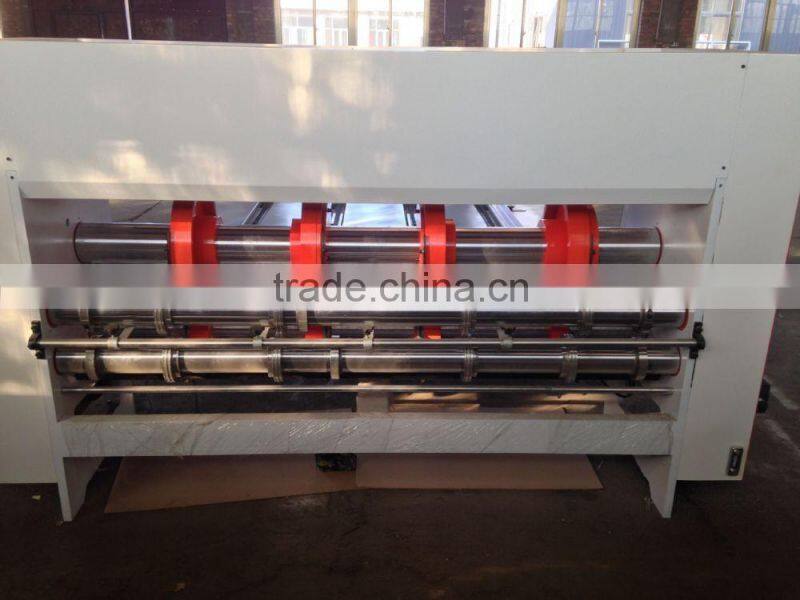

Slotter Unit:

*Gear enclosed spray lubrication system,keyless drive design,so that accurate long-term chromatic unchanged.High speed flexo printing slotting(stacking unit) 3.2 phase institutions is 360 degree electric adjustment,ergonomin design.

*Four-blade sync adjustment for carton height.

*Serrated slotted cutter.Thickness:7mm.Cutting angle blade width:45mm.

 Main features:

1.40mm thick wall panels, cast to track.

2. Feed unit 12A using precision roller chains feed, bilateral specified bit, countertops 5mm thick

3. slotted portion 360 ° NC electric phase, 7mm thick 65 Mn alloy tool.

4. slotted portion manually traverse four knives, manually synchronize transfer box is high.

5. Each unit 360 ° NC electric phase.

6. Automatic counting, the host jog, lighting devices.

7. Automatic spray lubrication.

8. Machine 50mm thick helical gears, Oldham no gap adjustment, Keyless ring connection.

9. Main Motor: Main motor adopts frequency control motor (Delta converter).

Machine comes with wearing spare parts:

1. The special wrench 1 set

2. a wrench to live

3.192 Garden knife two round

4. Vulnerability screw
