Home > Products > ATV/Quads > 550CC AUTOMATIC ATV QUAD BIKE 500 WITH TRACK (EEC approved)

550CC AUTOMATIC ATV QUAD BIKE 500 WITH TRACK (EEC approved)

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

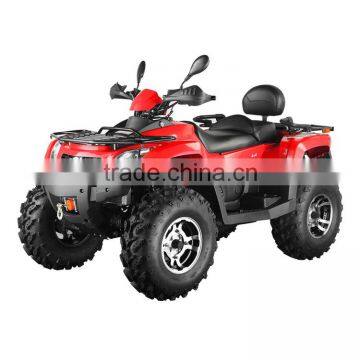

550CC AUTOMATIC ATV QUAD BIKE 500 WITH TRACK (EEC approved)

ENGINE TYPE	4Stroke,V-Twin Cylinder, SOHC,EFI
ENGINE COOLING	Liquid-Cooled
MAX.POWER(KW/rpm)	26.5KW/7000rpm
STANDARD POWER	25KW/6500rpm
MAX.TORQUE(NM/rpm)	45N.m/5500rpm
MAX.SPEED	≥90Km/h
BORE STROKE	72.5mm x 66.8mm
DISPLACEMENT	552ml
COMPRESSION RATIO	10.3:1
FUEL SUPPLY SYSTEM	ECU
LUBRICATION	Separated&pressure
AIR FILTER TYPE	Dry Air-Cleaner Net
SPARK PLUG	DR8EA
STARTING	Electric Start & Pull start
STARTING PROCEDURE	Turn lgnition
GEARSHIFT	Manual
TRANSMISSION	CVT(H/L/N/R)
BRAKE FRONT	Disc Brake
BRAKE REAR	Disc Brake
BRAKE DISTANCE	7m/30km/h
FRONT SUSPENSION	Macphersan Independent
REAR SUSPENSION	Double Wishbone
SHOCK ABSORBER(F/R)	Spring and Damp Shock Absorbor
BATTERY	12V/18AH
ENGINE OIL	1.5L
TRANSMISSION OIL	0.8L
REAR OIL	0.3L
FUEL	93# Unleaded Gasoline
FUEL CAPACITY	12L
TURNING RADIUS	3280mm
MAX.LOAD(kgs/lbs)	204kg
FRONT TIRE	25x8-12
REAR TIRE	25x10-12
OVERALL	2016x1180x1237mm
PACKING SIZE	2310x1320x870mm
WHEELBASE(mm)	1271mm
SEAT HEIGHT(mm)	895mm
GROUND CLEARANCE	300mm
NET WEIGHT	285kgs
COLOR	Red, Black, Orange, Blue, Army Green, Camo
LOADING QUANTITY	8pcs/20'GP,18pcs/40'GP,27pcs/40'HQ
