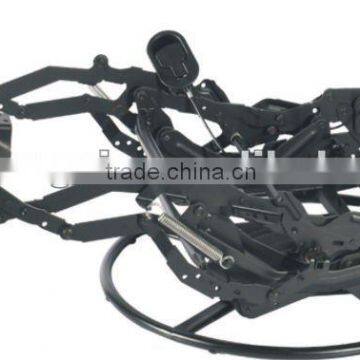

Sofa Recliner Mechanism4910

Specifications

Sofa Recliner Mechanism4910

1. The ottoman adopts the design of wide heavy gauge links and built-in articul
    ating elevated mid-ottoman.Profile shape designed for safety and appearance
    without pinch points. Articulating designs allows use of wider & higher mid
    -ottoman for elimination of entrapment areas and for leg support.
2. The  system  adopts  the  geometrically  balanced  design  to balance  chair
    operation.It is consistent and easy for operation by any person.The occupant
    is weight is used  to balance  operation. Meanwhile it controls the sitting
    position and reclining position. Springs here are only used for locking and
    the initial start of the opening
3. The customer has several options as  to how to activate the mechanism. There
    are cable style,outside handle style and inside handle style.Easy operation
    Customer can choose to use handle or lever activation to open the mechanism
    and the color of the handle  or lever. Slight  footrest pressure will allow
    closing the ottoman.
4. The system uses direct drive with double locks. The direct drive with double
    over-center locks  enables maximum synchronization of side positive locking
    of both sides.Square drive tube connects to and controls both left and right
    sides. Ottoman is locked closed on both sides.
5. Minimum stack-up design. The  adoption  of  the flatter links and wider base
    mounting points  enables  greater  bending resistance and greater stability
    and strength.It improves weight capacity and durability. The mechanism base
    width is closer to seat width while maintaining sufficient clearance between
    links to eliminate possibility of interference.
6. Flanged links for stabilizer tubes.Set up the maximum strength stability and
    is side to side. It eliminates  problems with flexing and breaking of tubes
    end at bend.Flange is on heavy gauge link instead of the lighter gauge tube
    which can flex and break.
7. Large  diameter cross  tubes are  used instead  of formed  straps  makes the
    system obtaining the  maximum strength, side to side  stability  and torque
    control. Unique design of  flattened tube  end maximizes torsional strength
    unlike  non-tubular cross  members  which  have  no  significant  torsional
    strength.
8. The system uses the extended life rivet joints design. All rivet joints have
    either acetal or bronze  rivet bushing and  acetal spacers to eliminate any
    steel to steel contact. No metal to metal noises  when links  contact nylon
    stop pins.
9. Interchangeable  on wood  frame design. The  wood  frames  designed  for the
    rocker recliner, motorized lift are all interchangeable.
10. The back of the chair  adopts the KD  sleeve design for  easy packaging and
      installation.
