Home > Products > Weighing Indicator And Accessories > Electronic Weighing Indicator
Electronic Weighing Indicator
- 5000 Piece / Pieces per Month
- Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LC | |
| Model Number | LC A7-W LED | Type | Other, Weighing Indicator | |
| Power Supply | 110V-240V ,6V/4anh Rechargable Battery | Display Type | LED | |
| Rated Load | 10T, 60kg,100kg,150kg,300kg,600kg,1T,2T,3T,5T,10T | Accuracy | 0.02kg-5kg, C3 |
Product Description
Specifications
1, High Precision Weighing Indicator2, Sole Appearance Design
3, CE Certificate
4. With RS232 Connection
Detailed Product Description

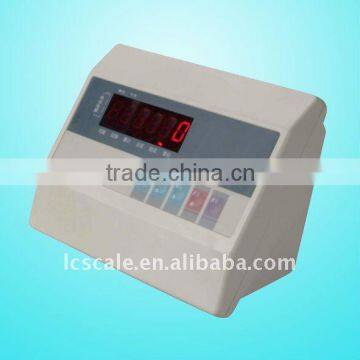

A7 weighing indicator:
1. Fast speed, high precision A/D conversion
2. Anti-vibration software
3. Apply in weighing
A7 weighing indicator
Introduction:
- High precision double integral A/D conversion technology,
- Applied in platform scale, mechanic-electronic scale, weighing system equipped with 1-4 load cell.
Features:
- A/D conversion speed with max external counts 15000(without division switch) 7500 (with)
- Use inner code to replace weight observing for analyzing the tolerance.
- Zero tracking range, Zero range and Zero speed adjustment function
- Indicate the battery volume or status
- Protect the low battery
- Optional function: 1.Kg/Lb switch
Parameters:
Model | A7 | A7+ |
Input signal range | 0mV~16mV | |
Input sensitivity | 1 V/e | |
Load cell Excitation | Dc 8V: 150mA | |
Max. load cell connection | 1 at 350 ohm | 4 at 350 ohm |
Display | 6 bits LED, 6 status indications | |
Optional interface | RS232C serial communication | |
Transmission distance | RS232C 30 meters | |
Power supply | AC 187-242V 49-51Hz, DC 12V 8AH | |
Product weight | 15.5KG | |
