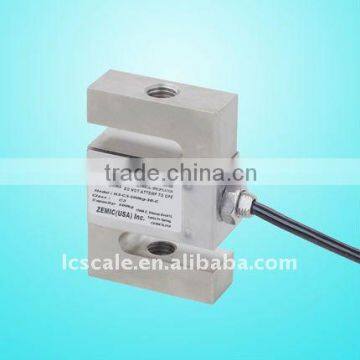

scale loadcell

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	ZEMIC
Model Number	H3

1.Capacity: 25kg to 30t
2.High accuracy, C3,
3.With OIML approval
4.Alloy steel construction

Capacity 25kg-30000Kg.
High accuracy.
Alloy Steel construction.
OIML Approved

Capacity	t	0.025/0.05/0.1/0.15/0.2/0.25/0.3/0.5/0.6/0.75/1/1.5/2/2.5/3/5/7.5/10/15/20/30
Capacity	lb	100/200/250/300/500/750/1K/1.5K/2K/2.5K/3K/5K/10K/15K/20K
Accuracy		C2	C3	C4	A5S	A5M	B10S	B10M
Approval			OIML R60 C3	OIML R60 C4
Maximum number of verification intervals	n max	2000	3000	4000	5000	5000	10000	10000
Minimum load cell verification interval	v min	Emax /5000	Emax /10000	Emax /14000	Emax /15000	Emax /15000	Emax /10000	Emax /10000
Combined error	%FS	≤±0.030	≤±0.020	≤±0.018	≤±0.018	≤±0.026	≤±0.035	≤±0.050
Creep	%FS /30min	≤±0.024	≤±0.016	≤±0.012	≤±0.012	≤±0.017	≤±0.030	≤±0.040
Temperature effect on sensitivity	%FS/10°C	≤±0.017	≤±0.011	≤±0.009	≤±0.009	≤±0.013	≤±0.030	≤±0.040
Temperature effect on zero	%FS/10°C	≤±0.023	≤±0.015	≤±0.010	≤±0.010	≤±0.014	≤±0.030	≤±0.020
Output sensitivity	mv/v	2.0±0.004(Metric) 3.0±0.008(Imperial)
Input resistance	Ω	350±3.5
Output resistance	Ω	351±2.0
Insulation resistance	MΩ	≥ 5000(50VDC)
Zero balance	%FS	1.5(Metric) 1.0(Imperial)
Temperature, compensated	°C	-10~+40
Temperature, operating	°C	-35~+65
Excitation, Recommended	V	5~12(DC)
Excitation, Max	V	18(DC)
Safe overload	%FS	150
Ultimate overload	%FS	300
