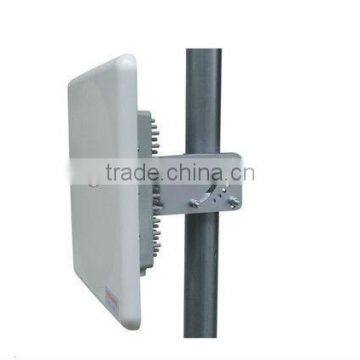

2.4GHz Digital Wireless Long Range AP Bridge TX RX all-in-one SG-WB2400

Standards Compliance

IEEE 802.11b/g
IEEE 802.3
IEEE 802.3u

SDRAM

8 M Byte

Flash

2 M Byte

Radio Frequency Type

DSSS / OFDM

Modulation

IEEE 802.11b: CCK,DQPSK,DBPSK
IEEE 802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM

Frequency Band

America/FCC: 2.412~2.462 GHz (11 channels)
Europe CE/ETSI: 2.412~2.472 GHz (13 channels)

Transmission Power

IEEE 802.11b: 20dBm
IEEE 802.11g: 20dBm

Transmission Rate

IEEE802.11b: 1/ 2/ 5.5/ 11 Mbps
IEEE802.11g: 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps
Super G: up to 108Mbps

Access Point Interfaces

Auto MDI/MMDI-X Ethernet 10/100Base-TX: RJ-45

Sensitivity

-86dBm @ 11Mbps,PER< 8%;-64dBm @ 54Mbps,PER< 10%

Antenna Type

Integrated 12 dBi flat panel antenna

Security Systems

64-bit/128-bit/152-bit/ WEP encryption and Wi-Fi Protected Access(WPA)

Wireless Setting

Operation Mode-AP/Wireless Client/Repeater/Bridge(WDS)PtP and PtMP Mode

Software/Firmware

Site Survey
DHCP Client
Suppressed SSID
Station separation
Wireless access control by MAC address (deny or accept)
WPA Support (WPA personal and enterprise)
Web-based configuration via popular browser (MS IE, Netscape…)
Windows “Locator” program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web
Reset to default by WebUI
Support SNMP v1/v2c

Operating Environment

Operating Temperature: -10 ~ +70°C

Power

DC 12 Volt + 5%; 1.5A (Max.); AC adapter AC 100V ~ 240V

Regulatory Approval

FCC Part 15 B (US); CE

Network Management
System OS Support

Windows 2000/ XP/ Vista Home BASIC

Warranty

One year
