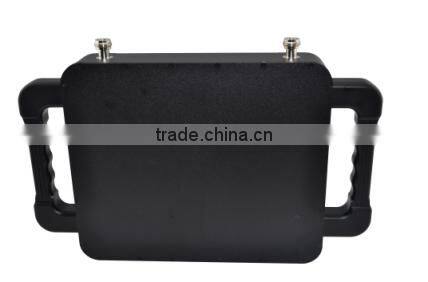

OEM 1080P HD Wireless COFDM AV Receiver With Sun Shade

Specifications

Summary:

 It’s our newest desgined HD multi-funtional CODFM video receiver special for army outdoor use.The use of advanced multi-carrier diversity reception technology to support high-speed mobile reception and non line-of-sight.With 7 inch high-definition screen and provides simple control operation by user and perfect image display,Which provide quick reference data for quick installation works. Our product is widely used in security, fire, and emergency communications and broadcasting industries.

Product Features:

l         High brightness,contrast,anti-glare screen with a sun shade,sun clearly visible.

l         Center marker,screen marker(viewfinder)function

l         Color/B&W/R,G,B Monochrome display

l         COFDM modulation,H.264/MPEG-2 full functional image decoding;

l        support Multicarrier double antenna diversity reception

l        Built in with 7 inch 1080P high definition LCD screen;

l        With internal Li-battery,support 4 hours continously working;

l        Frequency can be customized according to requirements.Usual suggest at the range of 300-900MHz;

l        Support video audio transmitting synchronously;

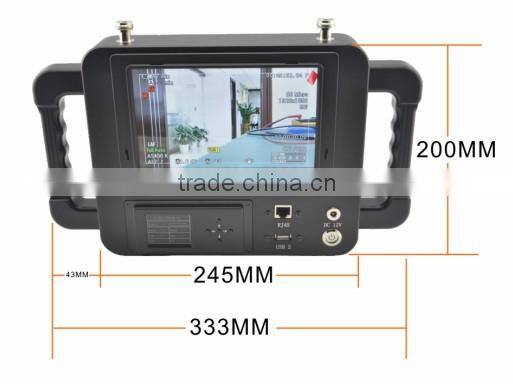

Dimension of the receiver:

Specifications:

1.       Frequency:300-900MHz(optional);

2.       Modulation:COFDM;

3.       Bandwidth:2/2.5/4/8MHz(adjustable);

4.       USB plugs: U disk inserted type DVR;

5.       Audio output:3.5mm jack (CVBS)headphone;

6.       Voltage:DC12V;

7.       Sensitivity:-104dBm/2MHz;

8.       Decoding mode:H.264/MPEG-2;

9.       Encryption mode:AES256 bits;

10.   Internal Li-battery:6000mA, can work 4 hours synchronously;

11.   Dimension:334*200*51mm

12.   Net weight:3.1kg

Front control panel:

1.Headphone jack

2.CAMERA:Camera mode key

3.SCALE: Screen marker dispaly confirm,you can choose 80%,85%,90%,93%,96%,off.

4.LEFT: Center mark (cross) display,volume adjustment is to reduce the volume,press the RIGHT button to confirm.Then press this button to control the volume decrease.In the menu settings for project selection and adjustment.showed that the volume is adjusted to reduce the  volume.Press the right key to confirm and then click this button again to control the volume decrease. The menu is for project selection and fixed value adjustment.

5.RIGHT: volume adjustment confirmation key.When you need to adjust the volume,first press to confirm the size press,then press this button to increase the volume control in the menu settings for project selection and adjustment.

6.MENU: Menu key to entr/exit the menu.

7.DOWN:Direct pressing this key,shortcut keys for the focus assist.To enter the menu for the down adjustment key to select the next option.

8.UP:Direct pressing this key,color/B&W/monochrome(R,G,B)select a shortcut.Enter the menu for the up adjustment key to select the previous option.

9.Mode:1080P/1080I resolution,hdmi&sdi interfaces are automatically compatible.

10.Power: On/standby select key

11.Power indicator

12.DC12V: power supply;

13.Power ON/OFF

14.RJ45: network connector.

15.USB: U disk inserted type DVR;
