Product Details
| Place of Origin | Guangdong, China | Brand Name | Safe Guard | |
| Model Number | SG-F8000A |
Product Description
Product odel: SG-F8000A
Specification:
Transmitter System Indicators | |
Frequency | 1.0-1.5(optional) |
RF Power | 8W |
Power Supply | DC12V 1.6A / AC220V 1A |
Modulation | FM |
Frequency stability | 0.0005%(standard) |
Impedance | 75Ω |
Phase Noise @10KHz | -75dBc |
Bandwidth | 20MHz |
RF Interface | N |
Work environment | -30~70 |
Video Format | PAL |
Video Input | BNC |
Size | 290*190*100mm |
Weight | 3kg |
Receiver System Indicators | |
Frequency | 1.0-1.5G(optional) |
Impedance | 75Ω |
Video Output | Analogic AV signal |
Voltage | AC220V |
Current | 0.6A |
Interface | BNC |
Temperature | -30~50°C |
Humidity | 0.96% |
Weight | 1.5KG |
Size | 250*150*110mm |
Audio index | |
Audio Output | 600ΩBalance/ 0.5vImbalance |
De-emphasis | 75us/50us |
Frequency corresponding | 50Hz to 15KHz(+/-0.5dB) |
Carrier frequency | 6.5MHz |
AV Interface | BNC |
Distortion | 3% |
FM Noise | -50dB |
Video Index | |
Video Output | 75 Ω unbalanced, 1.0Volt P-P |
Differential gain | 5% |
Differential phase | 5 |
SNR | 55dB |
De-emphasis | CCIR STANDARD PAL |
Packaging Details | |
Accessories | 2*antennas (customized); 2*RF Cable. |
Style | Paper carton |
Size | Undetermined |
Overall Weight | ≥10kg |

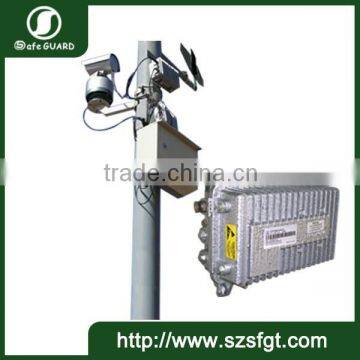

Product Installation Diagram:
Antenna installation diagram:
Replacement
Influence the second sale of products do not belong to the category of return within 30 days you get this product. Such as appearance injury, High-voltage fuse, Damp, Broken seals, soaking,and so on. Transportation costs of replacement, repairment etc. Paid by the buyer!!!
Warranty
One year free warranty, 3 months for spare parts. We only charge for replacement parts cost when exceed one year.
Shippment
- Items are only shipped after all payments are received by DHL, UPS, FEDEX etc. within one work day.
- Free shipping to select countries, please check carefully the shipping & packing in detail.
- For dispatching smoothly and safety, we have the final decision on the selection of shipping company.
- Please do kindly notice that there maybe a little difference in transportation time by the reason as climate, accident or other issues, sorry for not responsible for any reason of delays.
