Home > Products > Analog Long Range Video Transmission > Modulation FM long range Outdoor Wireless transmitter

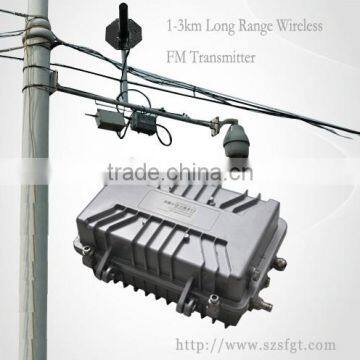

Modulation FM long range Outdoor Wireless transmitter

FOB Price

USD $100 - $500 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port ShenZhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Safe Guard
Model Number	SG-F3000A

Product Description

Specifications

1) NLOS distance up to 500~800m;
2) FM modulation, good performance for field task or military training.
3)light and safety

Product Model: SG-F3000A

Specification:

Transmitter System Indicators
Frequency	1.0-1.5(optional)
RF Power	3W
Power Supply	DC12V 1.2A / AC220V 1A
Modulation	FM
Frequency stability	0.0005%(standard)
Impedance	50Ω
Phase Noise @10KHz	-75dBc
Bandwidth	20MHz
RF Interface	N(F)
Work environment	-30~70
Video Format	PAL
Video Input	BNC
Size	250180110mm
Weight	2kg

Receiver System Indicators
Frequency	1.0-1.5G(optional)
Impedance	75Ω
Video Output	Analogic AV signal
Voltage	AC220V
Current	0.6A
Interface	BNC
Temperature	-30~50°C
Humidity	0.96%
Weight	1.5KG
Size	250150110mm

Audio index
Audio Output	600ΩBalance/ 0.5vImbalance
De-emphasis	75us/50us
Frequency corresponding	50Hz to 15KHz(+/-0.5dB)
Carrier frequency	6.5MHz
AV Interface	BNC
Distortion	3%
FM Noise	-50dB

Video Index
Video Output	75 Ω unbalanced, 1.0Volt P-P
Differential gain	5%
Differential phase	5
SNR	55dB
De-emphasis	CCIR STANDARD PAL

Packaging Details
Accessories	2antennas (customized); 2RF Cable.
Style	Paper carton
Size	Undetermined
Overall Weight	6kg

Replacement

Influence the second sale of products do not belong to the category of return within 30 days you get this product. Such as appearance injury, High-voltage fuse, Damp, Broken seals, soaking, and so on. Transportation costs of replacement, repairment etc. Paid by the buyer!!!

Warranty

One year free warranty, 3 months for spare parts. We only charge for replacement parts cost when exceed one year.

Shippment

1. Items are only shipped after all payments are received by DHL, UPS, FEDEX etc. within one work day.

2. Free shipping to select countries, please check carefully the shipping & packing in detail.

3. For dispatching smoothly and safety, we have the final decision on the selection of shipping company.

4. Please do kindly notice that there maybe a little difference in transportation time by the reason as climate, accident or other issues, sorry for not responsible for any reason of delays.
