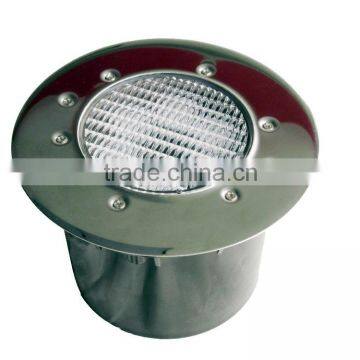

IP68 structure waterproof outdoor RGB underwater light

Features:

l 316 (V4A) stainless steel LED underwater light, unique heat-dissipation & waterproof design,

        high-grade and artistic, wide application.

l Transparent PC cover, anti-corrosion, shock-proof, unbreakable, safe transportation

l IP68 structure waterproof

l high power 1w as light source, Epistar, Bridgelux, Epileds as led chip for options.

l Color: Red, Green, Blue, RGB, 14 kinds of color changing mode

        Single color – white, red, green, blue, yellow

l 5 kinds of RGB control method: Remote control, Wi-Fi Control, DMX Control,

                                                         Automatic control, External control (wire control)

l Constant driver to make sure LED light working stable, avoid any flashing and noisy

l Voltage:AC/ DC 12V,  Frequency: 50/60HZ

l Beam angle: 15°/25°/30°/45°/60° for options

l Life span: >30000 hours

l Over-current protection

Application:  garden pond, square, water column, flower-bed in villas, garden,

                         rocky water-fall, outdoor fountain, etc.

Main Parameters:

RGB control methods are as followings:

(1). Remote control(2 wire connection): control RGB color changed by remote controller                                                               or RGB controller.

(2). External control(4 wires connection): RGB color changed by external controller .

(3). WiFi control(4 wires connection): RGB color changed by WiFi controller or Android                                                             system phone or Iphone

(4). DMX control(4 wires connection): RGB color changed by DMX controller

(5). Auto control(2 wires connection): RGB color changed automatically, RGB program                                                               is pre-set

(6). Remote and Switch control(2 wires connection): RGB color changed by RF reote or                                                                                  switch(RGB changed by switch on/off)

   RGB Control Method:

The dimension of recessed underwater light:

Size: 1) 157mm(diameter) x 104mm(height)

                HG-UL-3*1W-R  /  HG-UL-6*1W-R

            2) 176mm(diameter) x 108mm(height)

                HG-UL-9*1W-R  /  HG-UL-9*3W-R / HG-UL-12*1W-R

Installation:

 LED Underwater light series:
