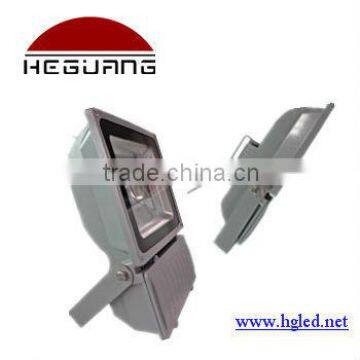

Factory price cool white with sensor 30w outdoor led flood lamps

Specifications

Parameters

Model No.

HG-FL-10W

HG-FL-20W

HG-FL-30W

LED Type

COB 10W

COB 20W

COB 30W

LED Qty/pcs

1 PC

1 PC

1 PC

Input Voltage/V

AC85-265V

AC85-265V

AC85-265V

Power /W

10±0.5W(W,G,B)           6±0.5W(red)

23±0.5W(W,G,B)           17±0.5W(red)

33±0.5W(W,G,B)           23±0.5W(red)

Luminous flux /LM

White:650±5%Lm     Red:240±5%Lm    Green:300±5%Lm

Blue: 90±5%Lm

White:1500±5%Lm     Red:450±5%Lm     Green:740±5%Lm

Blue: 200±5%Lm

White:2200±5%Lm     Red:650±5%Lm     Green:1100±5%Lm

Blue: 270±5%Lm

Material

Aluminum + Glass

Aluminum + Glass

Aluminum + Glass

Power Factory

>0.9

>0.9

>0.9

CRI

>70

>70

>70

Color Temperature

WW:3000-3500K/PW:6000-6500K

R: 620-630nm/G: 515-525nm

B: 460-470nm

WW:3000-3500K/PW:6000-6500K

R: 620-630nm/G: 515-525nm

B: 460-470nm

WW:3000-3500K/PW:6000-6500K

R: 620-630nm/G: 515-525nm

B: 460-470nm

Dimension(mm)

104×86×110mm

180×140×130mm

270×188×158mm

Packing

1 pc in a 12.5x9.5x11.5white box, 24 pcs in 52x38x25cm carton, G.W. 16kg/ctn

1 pc in a 19x15.2x13.5cm white box, 12 pcs in 59x32x29cm carton, G.W. 17kg/ctn

1 pc in a 23.5x20x15.5cm white box, 4 pcs in 49x42x32cm carton, G.W. 22kg/ctn

Model No.

HG-FL-50W

HG-FL-100W

LED Type

COB 50W

COB 100W

LED Qty/pcs

1 PC

1 PC

Input Voltage/V

85-265V AC

85-265V AC

Power /W

53±0.5W(W,G,B)           44±0.5W(red)

10±0.5W(W,G,B)       6±0.5(red)

Luminous flux /LM

White:4000±5%Lm     Red:1000±5%Lm     Green:1500±5%Lm

Blue: 400±5%Lm

White:8000±5%Lm     Red:2500±5%Lm     Green:3000±5%Lm

Blue: 900±5%Lm

Material

Aluminum + Glass

Aluminum + Glass

Power Factory

>0.9

>0.9

CRI

>70

>70

Color Temperature

WW:3000-3500K/PW:6000-6500K

R: 620-630nm/G: 515-525nm

B: 460-470nm

WW:3000-3500K/PW:6000-6500K

R: 620-630nm/G: 515-525nm

B: 460-470nm

Dimension

286×235×173mm

286×360×187mm

N.W(Kg)

1 pc in a 29.5x12x37.5 white box, 2 pcs in 30x34x37.5cm carton, G.W. 8kg/ctn

1 pc in a 29.5x18.75x37.5white box, 2 pcs in 30x34x37.5cm carton, G.W. 13kg/ctn
