2016 New Designed Pile Driving Machine
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Efficiency | 1-3 M per minute | |
| Piling Speed(m/min) | 1-3 | Place of Origin | Hebei, China | |
| Brand Name | HT | Model Number | Pneumatic | |
| Weight | 200kg | Dimension(L*W*H) | 1500x600x1200mm | |
| Certification | ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2016 New Designed Pile Driving Machine :
1 Application And Features:
According to the actual needs of the water conservancy construction, this pneumatic pile driver widely used in flood, steel, wood, soil and
stone combination dam rescue. Flood dike reinforcement, rivers, lakes, ponds embankment maintenance, fence, cofferdam piling
operations, also applies to the highway slope protection and other small construction of pile foundation work.
The new product uses mechanics and air principle, under the action of the high pressure air, make the pile driving machine produce huge
impact force, and achieve the purpose of rapid piling.
Its main characteristic is: can adapt to a variety of complex rescue scene, strong maneuverability,mine type air compressor,big pressure,
abundant air, low failure rate,piling machine and card pile for the ergonomics design principle, using high-pressure hose quick installation
pneumatic fittings, convenient assembly and disassembly, simple and flexible operation, in particular, can adapt to play high piles, long
piles and long distance operation requirements.
The device can drive stakes,steel piles and cement piles. It not only replaces the traditional human ramming operation, but also greatly
reduced the labor intensity, and improves the driving efficiency.
2 Technical Parameters:
| Driving principle | Pneumatic |
| Power source | Diesel engine,28Hp |
| Inner diameter of trachea | 19MM |
| Trachea length | 20M (can be extened to 80M) |
| Driving part weight | 37 Kg |
| Working pressure | 0.63 Mpa |
| Impact energy | 100±10% J |
| Impulse power | 1.8±10% Kw |
| Impact frequency | 18±5% Hz |
| Air Consumption | 55±15% L/Second |

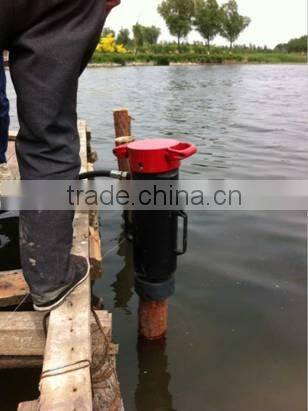

Driving Part-1 :
Driving Part-2 :

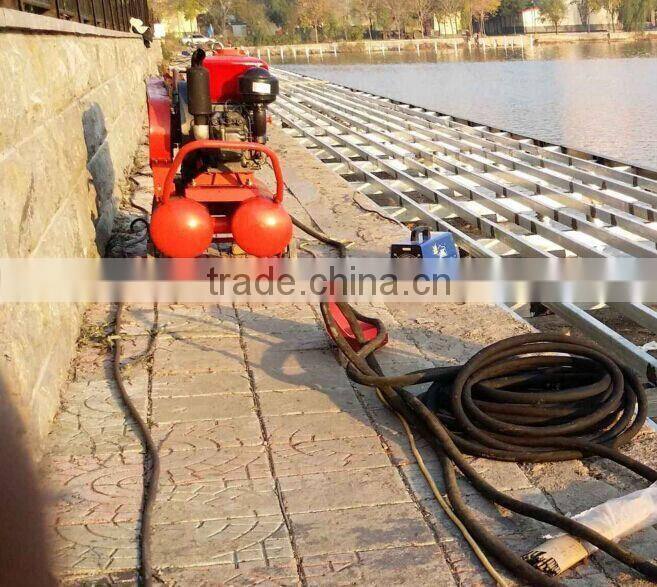

Power Source :

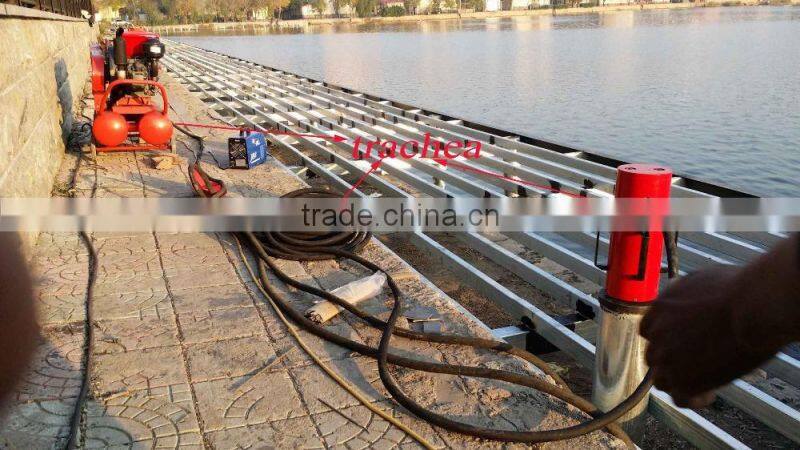

Trachea connects power source and driving part :

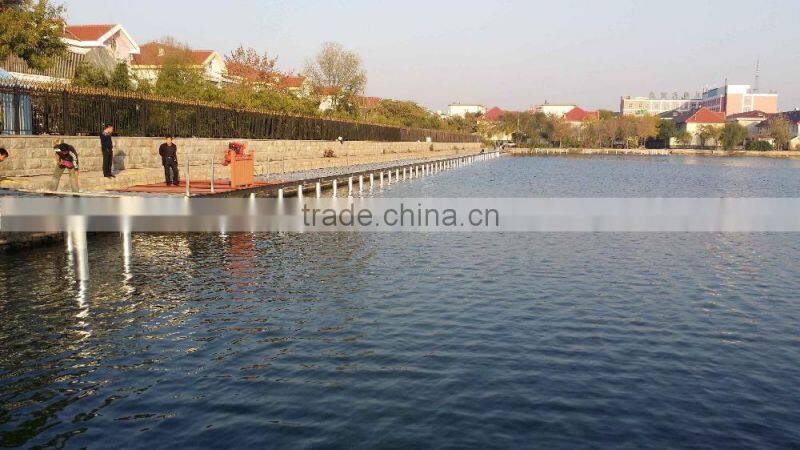

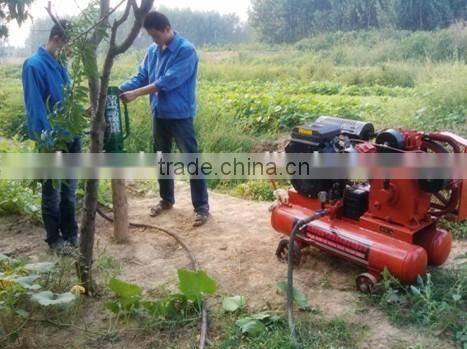

Construction Site :
