Home > Products > hot switch > TS4541-0381c 2 pin tact switch

TS4541-0381c 2 pin tact switch

FOB Price

US$ 0.001 - 0.1 / Piece

1000 Pieces(Min. Order)

Port ningbo or shanghai
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	omter
Model Number	TS4541-0381c	Protection Level	DC12V 50mA
Max. Current	-	Max. Voltage	AC250V for 1 minute

Product Description

Specifications

1.small size suitable for high density mounting.
2.Much thinner and lighter than conventional products.

tact switch

Item no.: TS4541-0381c

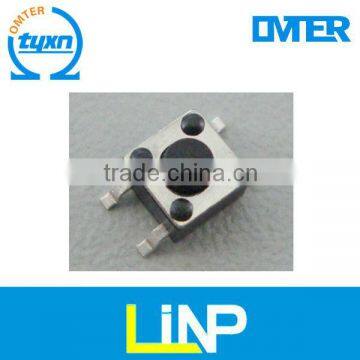

Detailed picture:

Drawing:

APPROVAL SPECIFICATIONS:
General characteristics:
Application:This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT)
Operating Temperature Range:-20°C~70°C(Normal humidity, normal air pressure)
Storage Temperature Range:-30°C~80°C(Normal humidity, normal air pressure)
Test Conditions Unless otherwise specified, tests and measurement shall be made in the following standard conditions: Normal temperature………………5°C~35°C Normal humidity…………………relative humidity 45%~85% Normal air pressure…………………86Kpa~106Kpa If any doubt arise from the judgment, tests shall be conducted at the following conditions: Temperature………………………20°C±2°C Relative humidity………………65%±5% Air pressure…………………………86KPa~106Kpa
Detailed specification:
Appearance: There should be no defects that affect the serviceability of product.
Style and dimension: shall conform to the assemble drawings.
Type of actuating: Tactile feedback.
Contact arrangement: 1 pole, 1 throw. (Details of contact arrangement are given in the assembly drawings.)
Ratings: 12V DC, 50mA (Effective value)
Electrical specification:
ITEM	TEST CONDITIONS	REQUIREMENTS
Contact Resistance	Applying a static load of 2 times operating force to the center of the stem, measurements shall be made by 5V DC 10mA or more than 1KHZ AC small-current contact resistance meter.	≤50m Ω
Insulation Resistance	Measurement shall be made following application of 100V DC potential, across terminals, and across terminals and cover, for one minute.	≥100M Ω
Dielectric voltage proof	250V AC (50HZ or 60HZ) shall be applied across terminals, for one minute.	No dielectric breakdown shall occur.
Contact Bounce	Lightly striking the center of the stem at a rate encountered in normal use (3 to 4 times per second), and bounce shall be tested at “ON” and “OFF”	ON-5msec.max. OFF-8msec.max.
Mechanical specification:
Operating Force	Placing the switch such that the direction of switch operation is vertical and then gradually increasing the load applied to the center of the stem, the maximum load required for the switch to come to a stop shall be measured.	260±50gf
Full Travel	Placing the switch such that the direction of switch operation is vertical and then applying static load of 2times operating force to the center of the stem; the travel distance for the switch to come to a stop shall be measured.	0.25±0.1mm
Return Force	The sample switch is installed such that the direction of switch operation is vertical and upon depressing the stem in its center to the whole travel distance, the force of the stem to return to its free position shall be measured.	60gf.min.
Stop Strength	Placing the switch such that the direction of switch operation is vertical, and then a static load of 5.2N shall be applied in the direction of stem operation for a period of 1 min.	There shall be no sign of damage mechanically and electrically.
Terminal Strength	A static load of 0.5N shall be applied to the tip of terminal in a desired direction for 10±1s. The test shall be done once per terminal.	There shall be no sign of damage mechanically and electrically
Solderability	Measurements shall be made following the test set forth below: 1)Solder temperature : 245±5°C 2)Immersion time: 2s±0.5s	Except for the edge, the coating should cover a minimum 90%
Resistance to low temperature	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature :-30±2°C 2) Time: 96h	Contact resistance: ≤200mΩ
Heat resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature: 80±2°C 2) Time: 96h	Contact resistance: ≤200mΩ
Change of temperature	After 5 cycles of following conditions, the sample shall be allowed to stand under normal temperature and humidity conditions for 1 h. and measurements shall be made. During the test waterdrops shall be removed.	Contact resistance: ≤200mΩ
Moisture resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) Temperature: 60±2°C 2) Relative humidity: 90% to 95% 3) Time: 96h	Contact resistance: ≤200mΩ
Sulfuration resistance	Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) H2S gas concentration: 3ppm±1ppm 2) Time: 72h 3) Temperature: 40±2°C(90~95%RH)	Contact resistance: ≤200mΩ
Salt Mist	The switch shall be checked after following test: 1) Temperature: 35°C±2°C 2) Salt solution : 5±1%(solids by mass) 3) Time: 8h±1 hour After test,salt deposit shall be removed by running water.	No remarkable corrosion shall be recognized in metal part.
Operation life	Measurement shall be made following the test set forth below: 1) DC 12V, 50 mA resistive load 2) Rate of operation: 60 times/s. 3) Operating Force:350~400gf 4) Average fault-free life:50,000 cycles	Contact resistance: ≤200mΩ Contact bounce: ≤10ms Operating Force: initial value±30%
Vibration	Measurement shall be made following the test set forth below: 1) Vibration frequency range: 10Hz to 55Hz to 10Hz 2) Amplitude: 1.5mm 3) Direction of vibration:Three mutually perpendicular direction including the direction of stem travel 4) Duration: Each 2hours.
Soldering conditions:
ITEM	RECOMMENDED CONDITIONS
Hand soldering	Please practice according to below conditions: 1) Soldering temperature: 350°C Max. 2) Continuous soldering time: 3 s Max.
Conditions for Auto-dip	Caution: The condition mentioned above is a temperature on the PWB surface on which parts are mounted. There are cases where PWB temperature greatly differs from switch’s surface temperature depending on PWB material , size , thickness , etc . Care , therefore , should be used not to allow switch’s surface temperature to exceed 280°C.
Note: 1,After switches were soldered, please be careful not to clean switches with solvent. 2,Right after switches were soldered;please be careful not to load to on the knobs of switches. Please be careful not to pile up PCB. after switches were soldered. 3,Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton.

More product:

Use of equipment:

Express delivery :

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 7-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 1000PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
