TS1211-1001c micro tact switch
US$ 0.001 - 0.1
/ Piece
1000 Pieces(Min. Order)
- ningbo or shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | omter | |
| Model Number | TS1211-1001c | Protection Level | DC12V 50mA | |
| Max. Current | - | Max. Voltage | AC250V for 1 minute |
Product Description
Specifications
1.small size suitable for high density mounting.2.Much thinner and lighter than conventional products.

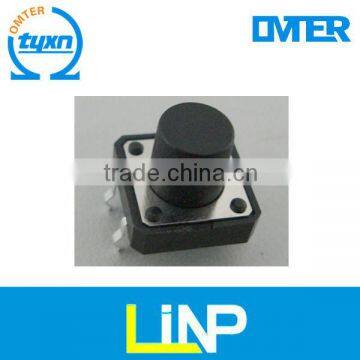

tact switch
Item no.: TS1211-1001c
Detailed picture:
Drawing:
| APPROVAL SPECIFICATIONS: | |||||||||||||||||
| General characteristics: | |||||||||||||||||
| Application:This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT) | |||||||||||||||||
| Operating Temperature Range:-20°C~70°C(Normal humidity, normal air pressure) | |||||||||||||||||
| Storage Temperature Range:-30°C~80°C(Normal humidity, normal air pressure) | |||||||||||||||||
| Test Conditions Unless otherwise specified, tests and measurement shall be made in the following standard conditions: Normal temperature………………5°C~35°C Normal humidity…………………relative humidity 45%~85% Normal air pressure…………………86Kpa~106Kpa If any doubt arise from the judgment, tests shall be conducted at the following conditions: Temperature………………………20°C±2°C Relative humidity………………65%±5% Air pressure…………………………86KPa~106Kpa | |||||||||||||||||
| Detailed specification: | |||||||||||||||||
| Appearance: There should be no defects that affect the serviceability of product. | |||||||||||||||||
| Style and dimension: shall conform to the assemble drawings. | |||||||||||||||||
| Type of actuating: Tactile feedback. | |||||||||||||||||
| Contact arrangement: 1 pole, 1 throw. (Details of contact arrangement are given in the assembly drawings.) | |||||||||||||||||
| Ratings: 12V DC, 50mA (Effective value) | |||||||||||||||||
| Electrical specification: | |||||||||||||||||
| ITEM | TEST CONDITIONS | REQUIREMENTS | |||||||||||||||
| Contact Resistance | Applying a static load of 2 times operating force to the center of the stem, measurements shall be made by 5V DC 10mA or more than 1KHZ AC small-current contact resistance meter. | ≤50m Ω | |||||||||||||||
| Insulation Resistance | Measurement shall be made following application of 100V DC potential, across terminals, and across terminals and cover, for one minute. | ≥100M Ω | |||||||||||||||
| Dielectric voltage proof | 250V AC (50HZ or 60HZ) shall be applied across terminals, for one minute. | No dielectric breakdown shall occur. | |||||||||||||||
| Contact Bounce | Lightly striking the center of the stem at a rate encountered in normal use (3 to 4 times per second), and bounce shall be tested at “ON” and “OFF”
| ON-3msec.max. OFF-8msec.max. | |||||||||||||||
| Mechanical specification: | |||||||||||||||||
| Operating Force | Placing the switch such that the direction of switch operation is vertical and then gradually increasing the load applied to the center of the stem, the maximum load required for the switch to come to a stop shall be measured. | 160±50gf | |||||||||||||||
| Full Travel | Placing the switch such that the direction of switch operation is vertical and then applying static load of 2times operating force to the center of the stem; the travel distance for the switch to come to a stop shall be measured. | 0.3±0.1mm | |||||||||||||||
| Return Force | The sample switch is installed such that the direction of switch operation is vertical and upon depressing the stem in its center to the whole travel distance, the force of the stem to return to its free position shall be measured. | 40gf.min. | |||||||||||||||
| Stop Strength | Placing the switch such that the direction of switch operation is vertical, and then a static load of 30N shall be applied in the direction of stem operation for a period of 1 min. | There shall be no sign of damage mechanically and electrically. | |||||||||||||||
| Stem Strength | Placing the switch such that the direction of switch operation is vertical, and then the maximum force to withstand a pull applied opposite to the direction of stem operation shall be measured. | 20N.min. | |||||||||||||||
| Soldering heat Resistance | Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h before measurement are made: 1)Solder temperature : 260±5°C 2)Immersion time: 5s±1s | There shall be no sign of damage mechanically and electrically. | |||||||||||||||
| Solderability | Measurements shall be made following the test set forth below: 1)Solder temperature : 245±5°C 2)Immersion time: 2s±0.5s | Except for the edge, the coating should cover a minimum 90% | |||||||||||||||
| Resistance to low temperature | Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature :-30±2°C 2) Time: 96h | Contact resistance: ≤200mΩ | |||||||||||||||
| Heat resistance | Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1 h. before measurements are made: 1) Temperature: 80±2°C 2) Time: 96h | Contact resistance: ≤200mΩ | |||||||||||||||
| Change of temperature | After 5 cycles of following conditions, the sample shall be allowed to stand under normal temperature and humidity conditions for 1 h. and measurements shall be made. During the test waterdrops shall be removed.
| Contact resistance: ≤200mΩ | |||||||||||||||
| Moisture resistance | Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) Temperature: 60±2°C 2) Relative humidity: 90% to 95% 3) Time: 96h | Contact resistance: ≤ 200mΩ | |||||||||||||||
| Sulfuration resistance | Following the test set forth below the sample shall be left in normal temperature and humidity conditions for 1h. before measurements are made: 1) H2S gas concentration: 3ppm±1ppm 2) Time: 72h 3) Temperature: 40±2°C(90~95%RH) | Contact resistance: ≤ 200mΩ | |||||||||||||||
| Salt Mist | The switch shall be checked after following test: 1) Temperature: 35°C±2°C 2) Salt solution : 5±1%(solids by mass) 3) Time: 24h±1 hour After test,salt deposit shall be removed by running water. | No remarkable corrosion shall be recognized in metal part. | |||||||||||||||
| Operation life | Measurement shall be made following the test set forth below: 1) DC 12V, 50 mA resistive load 2) Rate of operation: 120 times/min. 3) Operating Force:250~300gf 4) Average fault-free life: 100,000 cycles | Contact resistance: ≤200mΩ Contact bounce: ≤10ms Operating Force: initial value±30% | |||||||||||||||
| Vibration | Measurement shall be made following the test set forth below: 1) Vibration frequency range: 10Hz to 55Hz to 10Hz 2) Amplitude: 1.5mm 3) Direction of vibration:Three mutually perpendicular direction including the direction of stem travel 4) Duration: Each 2hours. | ||||||||||||||||
| Soldering conditions: | |||||||||||||||||
| ITEM | RECOMMENDED CONDITIONS | ||||||||||||||||
| Hand soldering | Please practice according to below conditions: 1) Soldering temperature: 350°C Max. 2) Continuous soldering time: 3 s Max. | ||||||||||||||||
| |||||||||||||||||
| Note: 1,After switches were soldered, please be careful not to clean switches with solvent. 2,Right after switches were soldered;please be careful not to load to on the knobs of switches. Please be careful not to pile up PCB. after switches were soldered. 3,Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton. | |||||||||||||||||
