Home > Products > LED Spotlights > TIWIN 2pcs/pack Pink 5w cob small led spot light / Best selling led recessed ceiling

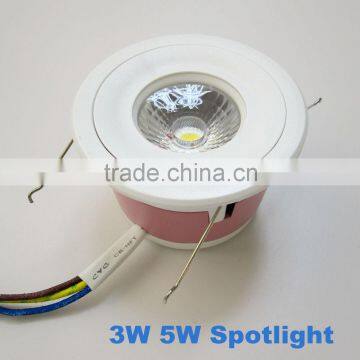

TIWIN 2pcs/pack Pink 5w cob small led spot light / Best selling led recessed ceiling

FOB Price

Negotiable / Piece

20 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	COB TE-R11	Warranty(Years)	2
Input Voltage(V)	AC220V~240V	Lamp Power(W)	5
Lamp Luminous Flux(lm)	465	Lamp Luminous Efficiency(lm/w)	85
Color Temperature(CCT)	Pure White	Working Temperature(℃)	-25, 40
Working Lifetime(Hour)	25000	Lamp Body Material	Aluminum
Certification	CCC, CE	Base Type	Other, cob led downlight
Place of Origin	Jiangsu, China	Brand Name	TIWIN
Model Number	SLCF small led spot light

TIWIN 2pcs/pack Pink 5w cob small led spot light / Best selling led recessed ceiling

	JIANGSU TIWIN OPTO-ELECTRONICS TECHNOLOGY CO.,LTD.

Document ID		Product Specification			Version	1.01
Compile Date					Page	2014/1/1
Photo			Item	Specifications
			Name	SLCF spotlight
			Product specification	AC220V~240V,50/60Hz 3W/5W
			Size	Φ85*55mm, Cut-Out:Φ75mm
			Installation method	Embedded mounted
dimensions			ambient temperature	—25~40C°
			Angle adjustment	No
			Control method	No
			IP grade	IP20
			Rated lifespan	≥25000H
			standard	GB7000.1-2007
			material	die-casting aluminum
			Power Efficiency	82%
			PF	0.5
			Installations component	Snap-in
			color	pink
CPD			Beam angle	35°
			Luminous flux	255lm/465lm
			CCT	3000K/5700K
			CRI	Ra≥80
			Brand	Toplite
			Lamp type	TE-R11
			specification	1 pcs chips, 0.13KG/PCS
			specification	output:280mA
			Inner box size	K3A 3 layers: 234x130x73 (mm)
			Carton size	A=B 5 layers: 392x280x51 (mm)
			weight(Kg)	N.W =8kg
			packing	25pcs inner boxes per carton,2 pcs lights in per inner box
