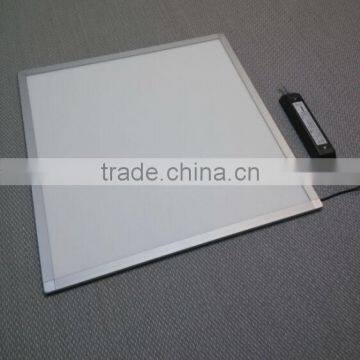

TIWIN 60*60cm 40w residential office super slim ultrathin led panel light
- 0 per Month
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
ultrathin 30w 5700k led 300x1200 ceiling panel light
-
ultrathin 10w 5700k 300x300 ceiling led panel light
-
ultrathin 18w 5700k 300x600 ceiling led panel light
-
ultra thin 18w 5700k 300x600mm ceiling led panel lighting
-
TIWIN ultra thin 30w 5700k 300x1200mm LED ceiling panel light
-
High quality 30*30cm 18w led light panel lighting for kitchen
Product Details
| LED Light Source | EPISTAR | Warranty(Years) | 2 | |
| Input Voltage(V) | 220-240 | Lamp Power(W) | 40 | |
| Lamp Luminous Flux(lm) | 3200 | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Other, 3000-6500K | Working Temperature(℃) | -25, 40 | |
| Working Lifetime(Hour) | 30000 | Lamp Body Material | PC | |
| IP Rating | Other, LED PANEL LIGHT IP 20 | Certification | CCC, CE | |
| Brand Name | TIWIN | Model Number | PNME4004A3U |
Product Description
Specifications
60*60cm 40w residential office ultrathin led panel lightSimple, light, slim, unique design
Soft and comfortable, no glare.
TIWIN 60*60cm 40w residential office ultrathin led panel light
Applications: hotel, meeting room, factory, office, schools, hospitals or public housing facilities and many other areas.
Features:
Simple, light, slim, unique design
Unique product design, to form a homogeneous lighting effect after going across the high transmittance light guide plate, even illumination light
Soft and comfortable, no glare.
CCT: 3000K/4000k/6500k
PNME serie | Working environment | Installation | Protection grade | Rated life | Color | Beam angle | CCT | |
| -25 ℃ ~ +40 ℃
| Embedded/hanging | IP20 | >30000h | aluminum | 120 ° | 3000K/4000K/6500K
| |
Specifications
MODEL# | Size | Power of lamp | Luminous flux | CRI | Power | Power factor | Electrical protection | Package quantity |
PNME1002A3U | 300 * 300 * 10mm | 10W | 700LM | ≥ 70
| 85% | ≥0.8 | Class II | 2 PCS / Box |
PNME1801A3U | 300 * 600 * 10mm | 18W | 1250LM | ≥ 70
| 85% | ≥0.8 | Class II | 2 PCS / Box |
PNME3001A3U | 300*1200*10mm | 30W | 2100LM | ≥ 70
| 85% | ≥0.8 | Class II | 2 PCS / Box |
PNME4004A3U | 600 * 600 * 10mm | 40W | 3200LM | ≥ 70
| 85% | ≥0.8 | Class II | 2 PCS / Box |
China TIWIN Co., LTD is a leading public-listed company (China TIWIN 000035), Jiangsu TIWIN Opto-electronics Technology Co., Ltd. is a core member of TIWIN Group.
TIWIN has the Asia's largest LED production base, plant area of 71,000 square meters, 65 automated production lines. The factory located in Haian, Nangtong city, Jiangsu province.
As a high-tech enterprise in Jiangsu Province, TIWIN Opto-electronics Technology Co., ltd has the most advanced optical laboratory in China. It brings together industry-renowned LED optical technology team. The product development and innovation have reached a industry-leading level.
TIWIN’s team successfully operates Yantai chaoshui Airport, Shenzhen landmark Jingji 100, Taiyuan Central-ring Bridge, Shanxi TV, Qingdao May Fourth Square, Chengdu Hejiangting International Wealth Forum main Stadium, the main stadium Luoyang Peony Festival, Harbin international Ice and Snow Festival, Guizhou planning Exhibition Hall, Beijing subway, Hangzhou subway, Shanghai Toyota production base, Tianjin Valley Mansion and more than 100 other large lighting projects.
Our factory in Jiangsu Hai an
Sample Room
Our R&D Center in Shanghai Cao He Jing HI-TECH PARK
1)Factory direct price
2)High power&quality SMD LED&most part of our products are CREE/Bridgelux LED
3)All kinds of products are CE&Rohs certified;Most products with TUV, UL, SAA, EMC, GS,ETL,Energy Star certifications
4)Product&Package with Unique design
5) Own professional and experiency R & D staffs, years of experience of handling OEM/ODM projects
6) ISO9001:2008 quality control system
