Bus Bar Leveler
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Euro-Asia/Gaoji | |
| Model Number | BMJP-160-260 BMJP-350 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Bus Bar Leveler1. Approved by CE and ISO9001:2008
2.Convenient and fast.
3.patent product developed by our company

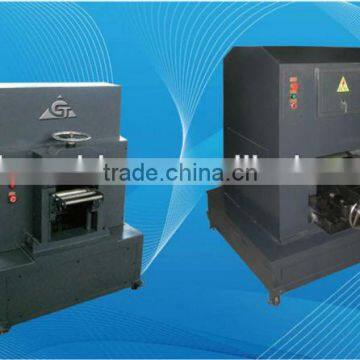

Bus Bar Leveler BMJP-160/260 BMJP-350
Main Performance
1.This series of machine is roller-type leveler, patent product developed by our company. The product is optimization design and alteration of conventional roller levering principle and won unanimous appreciation from the clients.
2.The machine adopts chain transmission method, replacing conventional geared box and connecting rod etc. the structure is simple,the work status is stable,the efficiency is high and the maintenance is convenient.
3.The machine adopts dual handwheel adjustment method,which is convenient and fast.
4.The machine has 11 rollers and dual powers which greatly make improvement of the workpiece slippage and it saves the power and can guarantee the surface quality of workpiece
Main specification and Technical parameter
Model | Number of Rollers | Overall Dimension L×W×H(mm) | Machine Weight (Kg) | Power of Motor (KW) | Maximum Leveling section dimension(mm) | Unevenness (mm/m) |
BMJP-160 | 11 | 1200×800×1200 | 960 | 1.5×2 | 160×12 | <1 |
BMJP-260 | 11 | 1300×1100×1400 | 1500 | 2.2×2 | 260×12 | <1 |
BMJP-3500 | 11 | 1500x1100x1400 | 2100 | 3x2 | 350x15 | <1 |
