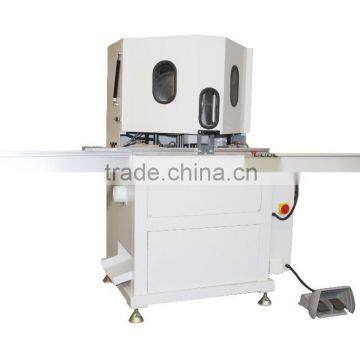

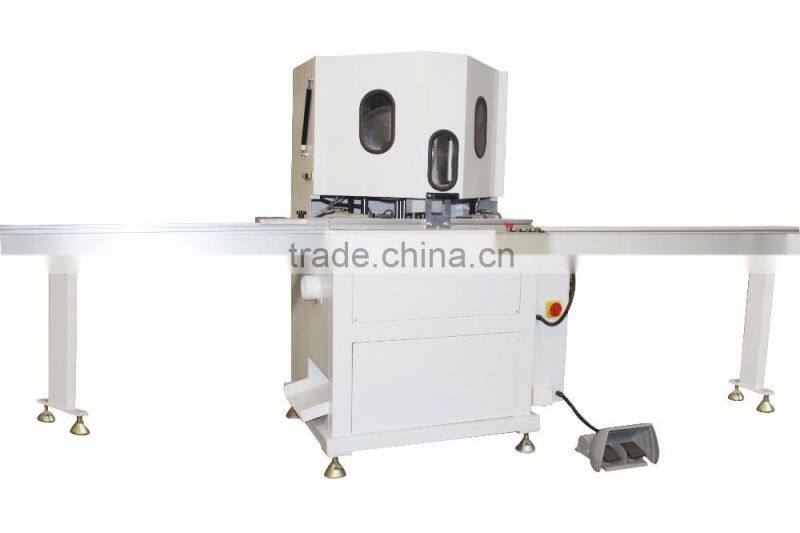

Wood Door and Window 45 Degree Cut off Saw/wood Cutting Saw Machine

 Wood 45 degree cutting saw for alu-clad wood win-door making machine

Performances and Features:

1. Saw blade can cut two 45 degree one time top-down

2. Unique horizontal clamping structure,cooperating with vertical press,enabling the profile stable during cutting.

3. The saw head connects the base throughthe linear bearing,which makes the cutting more stable.

4. The saw blade feed adopts hydro-pneumatic damping cylinder, the feed rate is stable and adjustable.Adjusting the speed according to the profile material makes the cutting surface meet higher apprearance requirements.

5. The machine adopts fully enclosed protective cover and leave a peep to ensure the safety of the operator.

6. Protective cover adopts the safety design of open-halt,make the machine does not start when the cover is open,to protect the safety of personnel at the great extent.

7. Shield internal LED lights,worker can observe the cutting process easily.

parameters:

1,Power supply:Three-phase four wire AC380V  50Hz;

2,Input power:4.5kW;

3,Air pressure:0.5~0.8MPa;

4,Blade rotational speed:3400r/min;

5,Saw blade specification:D:400mm d:32mm δ:4mm;

6,Cutting (W*H):100*100mm;

7,Outside dimension:950*1220*1650mm;

8,Weight:580kg
