Moulder/Wood Planer
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Four Side Moulder | |
| Place of Origin | Shandong, China | Brand Name | JMD | |
| Model Number | LM-620 | Voltage | AC380V/3Phase/50Hz | |
| Power(W) | 52.75kw | Dimension(L*W*H) | 3961*1462*1776mm | |
| Weight | 3150Kg | Certification | CE ISO9001 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

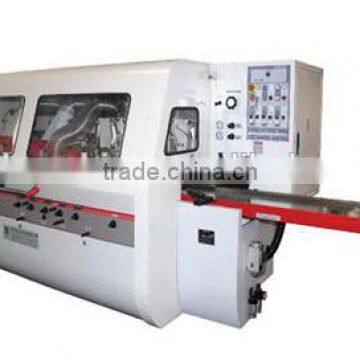

Wood Planer LM-620
Performance and Features
1. Feeding speed 7-28 m/min, continuously adjustable.
2. Each spindle driven by an independent motor, with strong milling force.
3. The main shaft adjustment is in the front, easy to operate.
4. Electroplating countertops, wear resistant.
5. The lower roll wheel improve the feeding efficiency.
6. Equipped with China Chint electrical components, the planer work stably.
7. The enclosed shield lows down the noise, hold the dust and ensure the safety.
8. The pressure of pneumatic feeding wheels can be adjusted independently, make sure the wood feeded smoothly.
9. Configured auxiliary device for short material, to promote effective smooth for short material
Machine parameters :
Motor power
The first lower spindle: 5.5kW
The first upper spindle: 7.5kW
The right vertical spindle: 11kW
The left vertical spindle: 11kW
The second upper spindle: 5.5kW
The second lower spindle: 5.5kW
Lifting beams: 0.75 kW
Feeding: 4.0kW
Power in total: 52.75 kW
Tool Diameter
The right vertical axis:Φ125-Φ180mm
The left vertical axis:Φ125-Φ180mm
The first lower shaft:Φ125mm
The first upper shaft:Φ125-Φ180mm
The second upper shaft:Φ125-Φ180mm
