FY-EMS Luxury Toughened Glass Network Cabinet

 FY-EMS luxury toughened glass network cabinet

Specifications:

1> Comply with ANSI/EIA, RS-310-D, IEC297-2, DIN41491: PART1, DIN41494: PART7, GB/T3047.2-92 standard, compatible with 19 inch international standard, metric system and ETSI standard.

2> Reliable structure, static loading capacity: 800KG

3> Adjustable feet and castors are available, moving conveniently and fixing reliable.

4> Baying together easily, quick efficiently and firmly.

5> Vented edge with MS818 handle lock , 5 mm tempered glass front door. Flat metal rear door with square holes, small round lock.

6> Optional cable entry on top cover and bottom panel, front & rear door and side panels can be removed facility, the bottom has the function of ventilation and rat-proof funtion.

7> Standrd accessories include Fans and shelves, optional also welcomed!

8> Optional opening hole and varies specification upon customers' special requirements.

Surface finish:

Degreasing, Pickling, Phosphating, Powder coating.

Material and Thickness:

High quality SPCC cold rolled steel, Mounting profile: 2.0mm, others: 1.2mm to 1.5mm

Color:

RAL 9004 Black or RAL 7035 Grey, customization also welcomed.

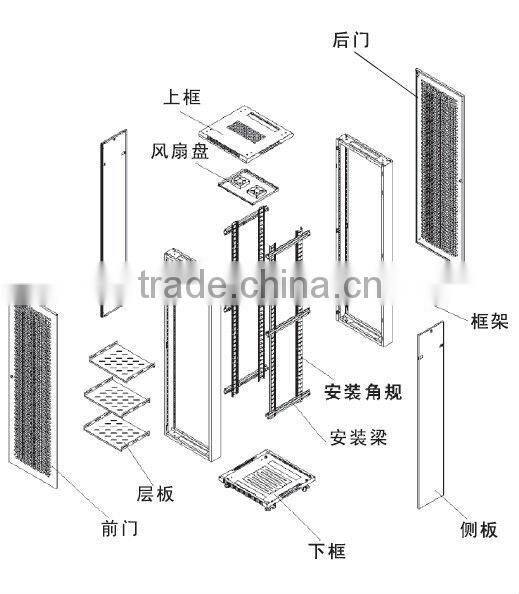

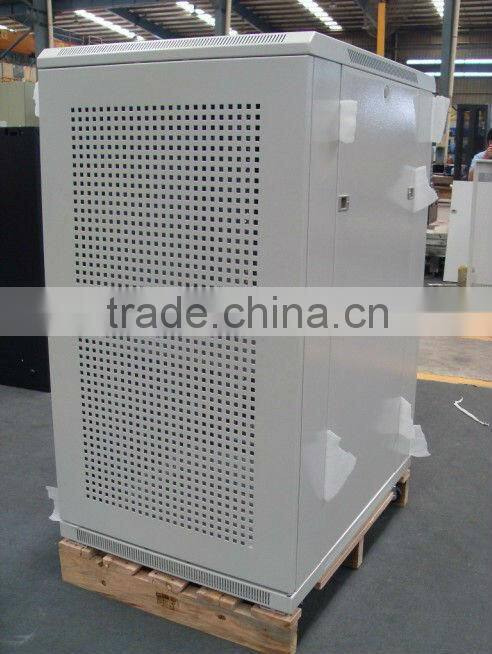

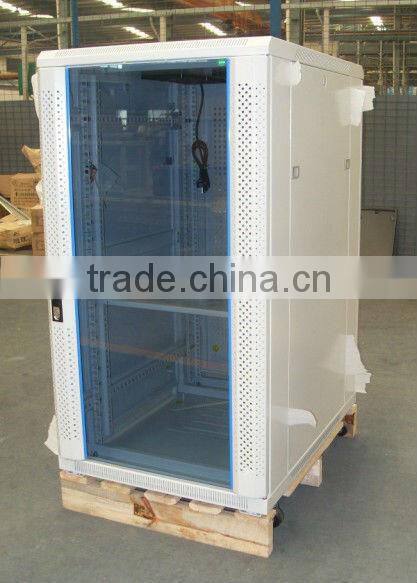

Product images:

Standard accessories:

1. Frame: 2 pcs

2. Front door: 1 pcs, 5mm tempered glass&vented edge with MS818 handle lock

3. Rear door: 1 pcs, Flat metal rear door with square holes, small round lock

4. Side panel: 2 pcs, with quick open latch and small round lock

5. Fan unit: 1 pcs

6. 4 inch fan: 2pcs for depth 600mm, 4pcs for depth 800mm and above

7. Fan power cord: 1 pcs

8. Top cover: 1 pcs

9. Bottom panel: 1 pcs

10.Castor tray: 4 pcs

11.Castor: 4 pcs

12.Support feet: 4 pcs

13.Mounting angle: below 27U(include 27U) 4 pcs, above 27U 6 pcs

14.Mounting profile: 4 pcs

15.Shelf: below 32U(include 32U)1 pcs, above 32U 3 pcs

16. Cable management: 2 pcs (only for 800mm width)

17. nuts& screws: below 32U(include 32U)20 pcs, above 32U 40 pcs

Packing detail:

 Term

 1. MOQ:10 units

2. Port of loading; Shenzhen, China.

3. Packing: Flat packing or assembled packing

4. Delivery:20 working days after 30% deposit receipt

5. Payment: T/T with 30% deposit, 70% balance should paid before Delivery

Why choose us?

1. 100% manufacturer selling

2. Wholesale/ Customize sample/OEM are available

3. Competitive price

4. High product quality ,Strict quality control

5. Fast Delivery: 20 working days after receipt of 30% deposit

6. Best service !

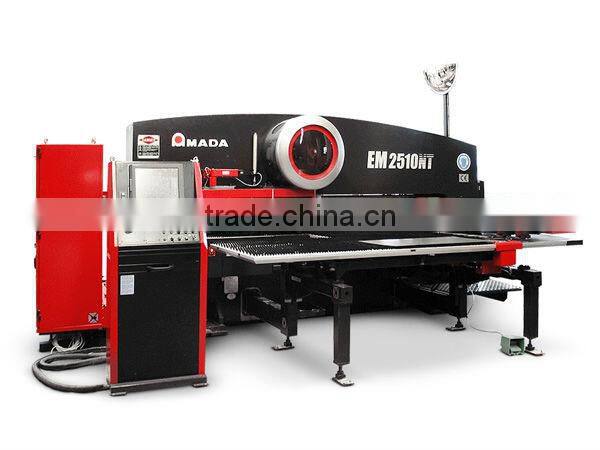

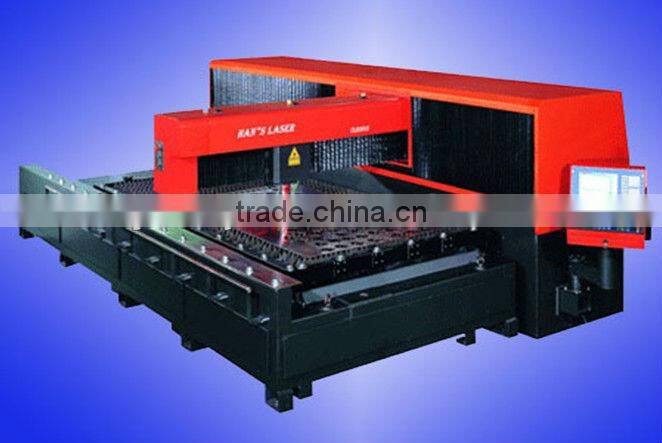

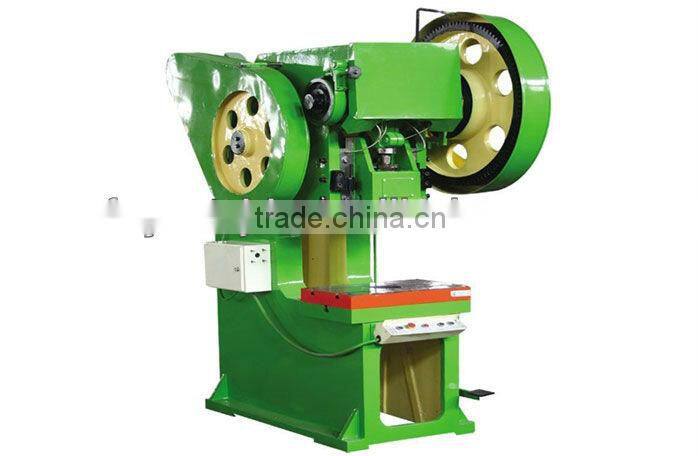

Photos of our factory's equipments:

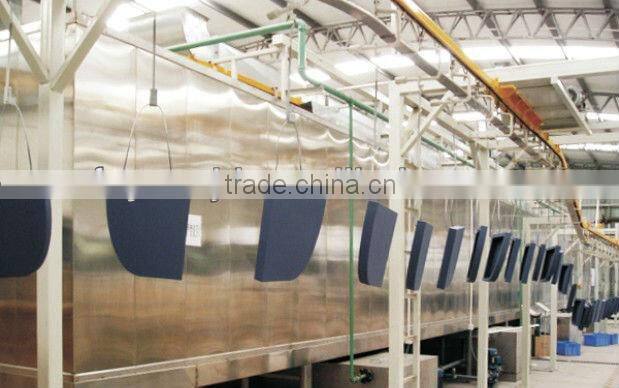

Photos of our factory:

Certification:
