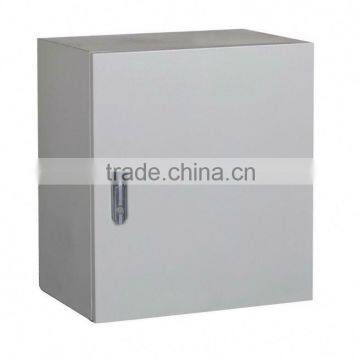

FY-AE Hot Sales SPCC Material Control Box

FY-AE Hot Sales SPCC Material Control Box

Features & Specifications:

1. Single or double-open door optional, with opening angle up to 130 degrees. The door can be swapped around, making it convenient to change a left-open door to right-open type.

2. Folding waterproof tank designed and welded into a whole frame, which is waterproof and dustproof.

3. Front door adopts polyurethane foam sealant or two pieces of embedded waterproof tapes, ensuring reliable sealing.

4. Two pieces cable slots are welded on both sides of the front door with vertical attitude, managing cables, meanwhile enhancing door strength. Cable slots punched with Ø3.3mm holes, making it convenient for fixing harness with M4 self-tapping screws.

5. Cable entry (with cover) designed on the bottom panel. Equipped with sealed rings, the entry cover can be uninstalled for punching holes fast and conveniently.

6. Rear panel with mounting ears, making wall mounting easily. IP degree: IP55.

7. The installing panel adopts fast-install design, installation depth is adjustable. Independent installation mode makes the working conveniently, electronics components can be well deployed before installing the panel into the cabinet.

8. Standardized accessories, enabling all accessories of FY-AE series are interchangeable.

9. Customizations based on customer requirements are welcomed; various kinds of specifications and structure adjustment are available.

Surface treatment:

Degreasing, Pickling, Phosphating, Cleaning, Drying, Powder coating

Material:

SUS stainess steel; High quality SPCC (cold rolled steel)

Thickness:

1.5mm to 2.5mm

Surface color (optional):

RAL 7032 or RAL 7035 (Grey)

Some pictures for your reference:

FY-AE Series Industrial Control Box structure view:

Some pictures about our factory & certificates:
