CIMC Logging Semi Trailer for Transporting Log / Wood / Timber

FOB Price

US$ 9,600 - 13,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Steel
Certification	Other, ISO ,CCC	Size	12355 * 2480 *1500 mm
OEM No.	CIMC logging semi trailer for transporting log / wood/ timber	Max Payload	50T
Place of Origin	Shandong, China	Brand Name	CIMC
Model Number	logging semi trailer

CIMC logging semi trailer for transporting log / wood/ timber

Product Description

CIMC logging semi trailer for transporting log / wood/ timber ------ Specification

SPECIFICATIONS

Dimension	Length	12,355mm*	Maximum Gross Weight		43,000kg*
	Width	2,480mm*	Maximum Payload		35,000kg*
	Height	1,464mm*	Tare Weight		8,000 kg*
The Kingpin Height		1,220mm*	Axle Loading Distribution
Front Overhang		800 mm *	Fifth Wheel Load	Empty	3,204kg*
Rear Overhang		1,135mm *		Full	17,222kg*
Wheel Space		1,310 mm*	Rear Axle Load	Empty	4,796kg*
Kingpin To The First Axle		7,660mm*		Full	25,778kg*
Tires		11R20	The Number Of Tires		6
SPECIAL FEATURES

1. Steel construction: All chassis adopts the high-tensile steel

2. Running system: Axles and suspensions system are complied with international standards.

3. Brake system: Adopt the international brands.

4. Electric system: China famous brands.

5. Shot blasting twice and particular coat painting can guarantee the quality of the chassis surface.

6. The vehicle is mainly use for transfer 1x40FT, 1x40HQ, 1x20FT, 2x20FT, log, lumber, pipe or loose cargo

7. The vehicle equipped winches and side hooks for tie the cargo fasten on the board

Detailed Images

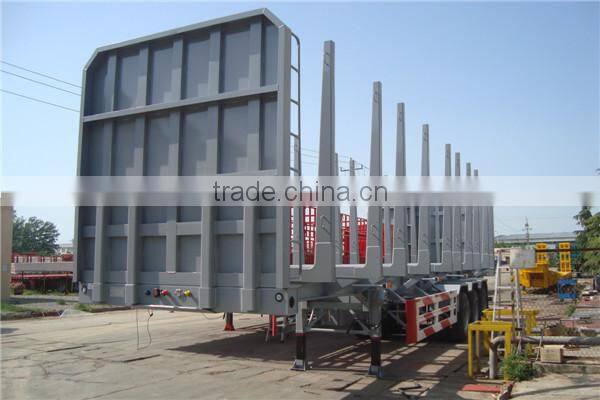

CIMC logging semi trailer for transporting log / wood/ timber ------ Details

Packaging & Shipping

CIMC logging semi trailer for transporting log / wood/ timber ------ Packaging

1.Nude Packing 3 sets stacked (by Bulk Cargo Ship, Ro-ro Ship, or Land Transportation) ;

2. Cut the rear part which can load two sets in one 40ft container ;

3. Keep the trailer original but load two sets in one 45ft container .
