3 Axle 60 ton Cargo Semi Trailer Flat Bed With Side Wall

Product Description

3 Axle 60 ton Cargo Semi Trailer Flat Bed With Side Wall------ Specification

Main specification
Type	Box Semi Trailer
Function	general cargos transport
Overall dimension	13000 2550 2400mm
Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Side beam	16#U shaped steel
Chassis
Traction pin	90#
Land gear	Standard 28ton
Axle	3x13ton
Axle brand	FUWA
Suspension type	Normal suspension
Laeaf spring	10/10/10
Tire	Triangle Brand, 1100R20, 12 sets
Side Board details	1.5mm thickness
Color	Optional
Frame
platform thickness	3mm(Normal)
Accessories
Brake	6 Double-chamber
Tool box	1 unit
Spare wheel carrier	2 units
Side marker lamp	LED type
Voltage	24V
Receptacle	7ways (7 wire harness)

Detailed Images

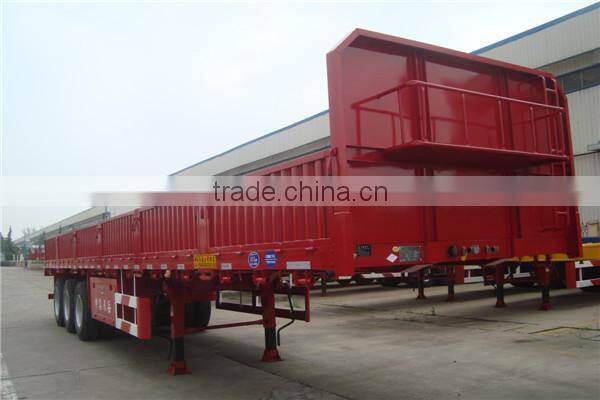

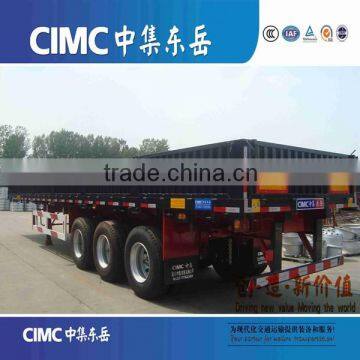

3 Axle 60 ton Cargo Semi Trailer Flat Bed With Side Wall------ Product Details
